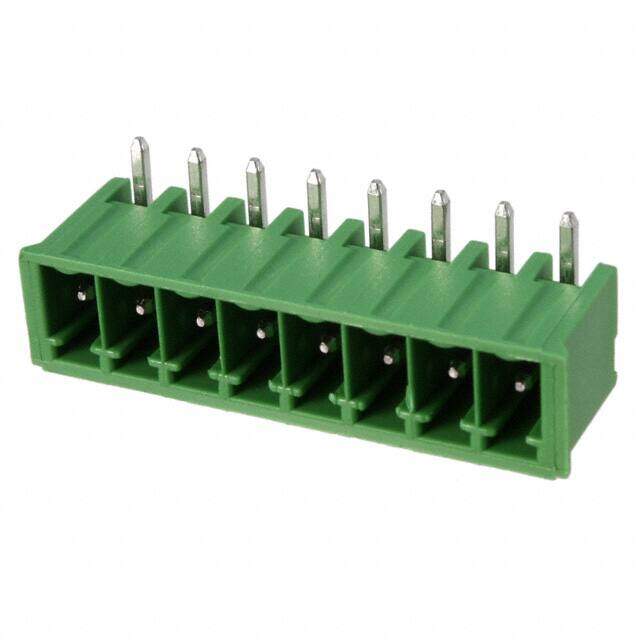

20020108-G021A01LF
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
2 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.197" (5.00mm) VerticalThrough Hole
PDF
/
Buying Options
Total Price: USD $0.72
Unit Price: USD $0.724585
≥1 USD $0.724585
≥10 USD $0.683579
≥100 USD $0.644878
≥500 USD $0.608378
≥1000 USD $0.573936
Inventory: 3843
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Length 20mm
Technical
Number of Positions Per Level 2
Header Orientation Vertical
Positions Per Level 2
Current - UL 12A
Voltage - UL 300V
Contact Mating Finish Tin
Current 12A
Number of Levels 1
Max Current Rating 12A
Max Voltage Rating (AC) 300V
Contact Tail Length 0.157 4.00mm
Voltage 300V
Housing Color Green
Number of Contacts 2
Termination Style Solder
Current Rating 12A
Insulation Height 0.472 12.00mm
Depth 8.5mm
Orientation Straight
Pitch 0.197 5.00mm
Voltage - Rated 300V
Gender Male
Number of Rows 1
Color Green
Min Operating Temperature -40°C
Max Operating Temperature 115°C
Number of Positions 2
Type Header, Male Pins, Shrouded (4 Side)
Connector Type Terminal Block
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Mating Flange
Series 06-500
Packaging Bulk
Operating Temperature -40°C~115°C
Physical
Housing Material Thermoplastic Resin
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Contact Material Copper Alloy
