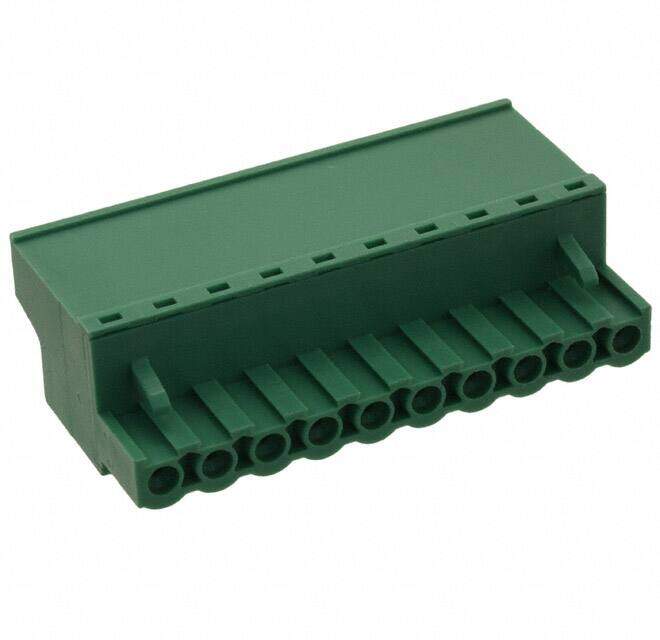

20020013-H101B01LF
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
10 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm)180° Free Hanging (In-Line)
PDF
/
Inventory: 8829
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Copper Alloy
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Thermoplastic Resin
Technical
Operating Temperature -40°C~115°C
Packaging Bulk
Series 03-508
Feature Retention Latches (Non-Wire Side)
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Connector Type Terminal Block
Type Plug, Female Sockets
Color Green
Number of Rows 1
Voltage - Rated 300V
HTS Code 8536.69.40.40
Pitch 0.200 5.08mm
Orientation Straight
Depth 15mm
Insulation Height 1.083 27.51mm
Current Rating 10A
Termination Style Screw - Pressure Clip
Number of Contacts 10
Voltage 300V
Max Voltage Rating (AC) 300V
Max Current Rating 10A
Number of Levels 1
Current 10A
Wire Gauge (Max) 22 AWG
Wire Gauge (Min) 12 AWG
Wire/Cable Gauge 22 AWG
Contact Mating Finish Tin
Number of Decks 1
Wire Gauge or Range - AWG 12-22 AWG
Torque - Screw 0.4 Nm (3.5 Lb-In)
Number of Ways 10
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 1-2.5mm2
Wire Strip Length 6-7mm
Screw Size M2.5
Wire Cross Section 2.5 mm2
Max Supply Voltage (AC) 300V
Dimensions
Length 50.8mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Lead Free Lead Free
