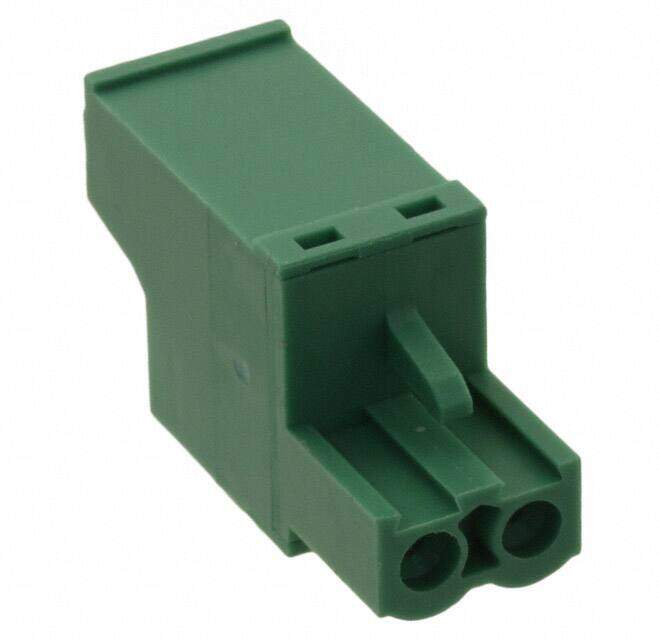

20020013-G021B01LF
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
03-500 ROHS3Compliant 2011 Straight Terminal Block Plug, Female Sockets 22AWG 115C 10A 300V
PDF
/
Buying Options
Total Price: USD $1.14
Unit Price: USD $1.140849
≥1 USD $1.140849
≥10 USD $1.076272
≥100 USD $1.015358
≥500 USD $0.957882
≥1000 USD $0.903658
Inventory: 9327
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Length 10mm
Technical
Max Supply Voltage (AC) 300V
Screw Size M2.5
Number of Positions Per Level 2
Wire Strip Length 6-7mm
Wire Gauge or Range - mm2 1-2.5mm2
Plug Wire Entry 180°
Positions Per Level 2
Torque - Screw 0.4 Nm (3.5 Lb-In)
Current - UL 10A
Wire Gauge or Range - AWG 12-22 AWG
Voltage - UL 300V
Contact Mating Finish Tin
Wire/Cable Gauge 22 AWG
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 22 AWG
Current 10A
Number of Levels 1
Max Current Rating 10A
Max Voltage Rating (AC) 300V
Number of Circuits 2
Voltage 300V
Housing Color Green
Number of Contacts 2
Termination Style Screw - Pressure Clip
Current Rating 10A
Insulation Height 1.083 27.51mm
Depth 15mm
Orientation Straight
Pitch 0.197 5.00mm
Voltage - Rated 300V
Number of Rows 1
Color Green
Min Operating Temperature -40°C
Max Operating Temperature 115°C
Number of Positions 2
Type Plug, Female Sockets
Connector Type Terminal Block
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Retention Latches (Non-Wire Side)
Series 03-500
Published 2011
Packaging Bulk
Operating Temperature -40°C~115°C
Physical
Housing Material Thermoplastic Resin
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Tin
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 10 Weeks
