20020012-H021B01LF
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

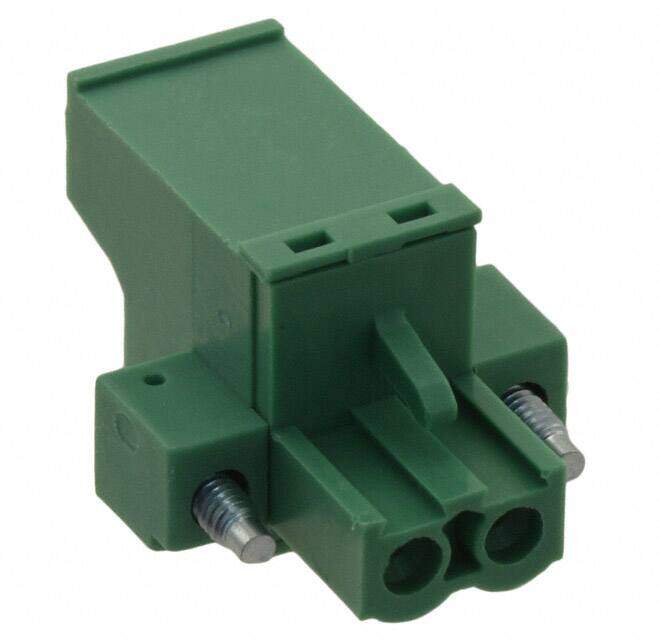

2 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm)180° Free Hanging (In-Line)
PDF
/
Inventory: 9997
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Length 20.26mm
Technical
Max Supply Voltage (AC) 300V
Screw Size M2.5
Number of Positions Per Level 2
Wire Strip Length 6-7mm
Wire Gauge or Range - mm2 1-2.5mm2
Plug Wire Entry 180°
Positions Per Level 2
Torque - Screw 0.4 Nm (3.5 Lb-In)
Current - UL 10A
Wire Gauge or Range - AWG 12-22 AWG
Voltage - UL 300V
Contact Mating Finish Tin
Wire/Cable Gauge 28 AWG
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 22 AWG
Current 10A
Number of Levels 1
Max Current Rating 10A
Number of Circuits 2
Voltage 300V
Housing Color Green
Number of Contacts 2
Termination Style Screw - Pressure Clip
Current Rating 10A
Insulation Height 1.083 27.51mm
Depth 15mm
Orientation Straight
Pitch 0.200 5.08mm
Voltage - Rated 300V
Number of Rows 1
Color Green
Min Operating Temperature -40°C
Max Operating Temperature 115°C
Number of Positions 2
Type Plug, Female Sockets
Connector Type Terminal Block
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Mating Flange, Retention Latches (Non-Wire Side)
Series 03-508
Packaging Bulk
Operating Temperature -40°C~115°C
Physical
Housing Material Thermoplastic Resin
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Tin
Contact Material Copper Alloy
