20020012-G021B01LF
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

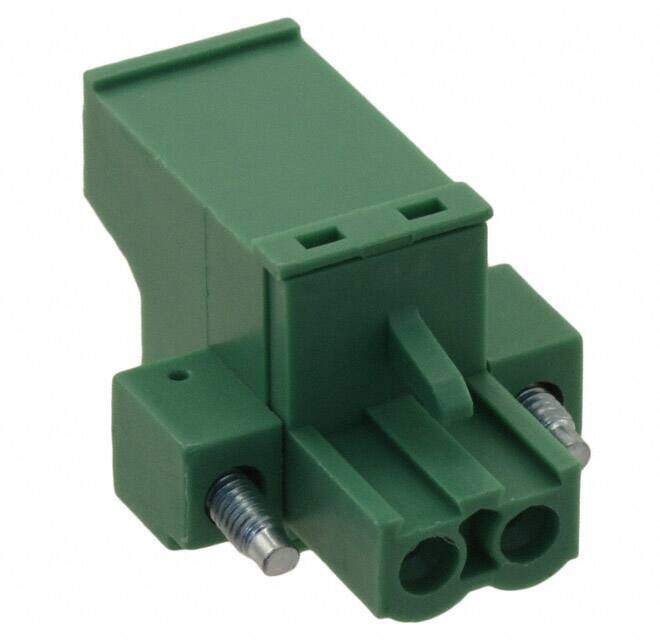

2 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm)180° Free Hanging (In-Line)
PDF
/
Buying Options
Total Price: USD $1.39
Unit Price: USD $1.390479
≥1 USD $1.390479
≥10 USD $1.311777
≥100 USD $1.237529
≥500 USD $1.167477
≥1000 USD $1.101396
Inventory: 6486
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Length 19.6mm
Technical
Max Supply Voltage (AC) 300V
Screw Size M2.5
Wire Strip Length 6-7mm
Wire Gauge or Range - mm2 1-2.5mm2
Plug Wire Entry 180°
Safety Approval UL
Number of Ways 2
Torque - Screw 0.4 Nm (3.5 Lb-In)
Wire Gauge or Range - AWG 12-22 AWG
Number of Decks 1
Contact Mating Finish Tin
Wire/Cable Gauge 12 AWG
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 22 AWG
Current 10A
Number of Levels 1
Max Current Rating 10A
Voltage 300V
Number of Contacts 2
Termination Style Screw - Pressure Clip
Current Rating 10A
Insulation Height 1.083 27.51mm
Depth 15mm
Orientation Straight
Pitch 0.197 5.00mm
HTS Code 8536.69.40.40
Voltage - Rated 300V
Number of Rows 1
Color Green
Number of Positions 2
Type Plug, Female Sockets
Connector Type Terminal Block
ECCN Code EAR99
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Mating Flange, Retention Latches (Non-Wire Side)
Series 03-500
Packaging Bulk
Operating Temperature -40°C~115°C
Physical
Housing Material Thermoplastic Resin
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Material Copper Alloy
