20020011-H021B01LF
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

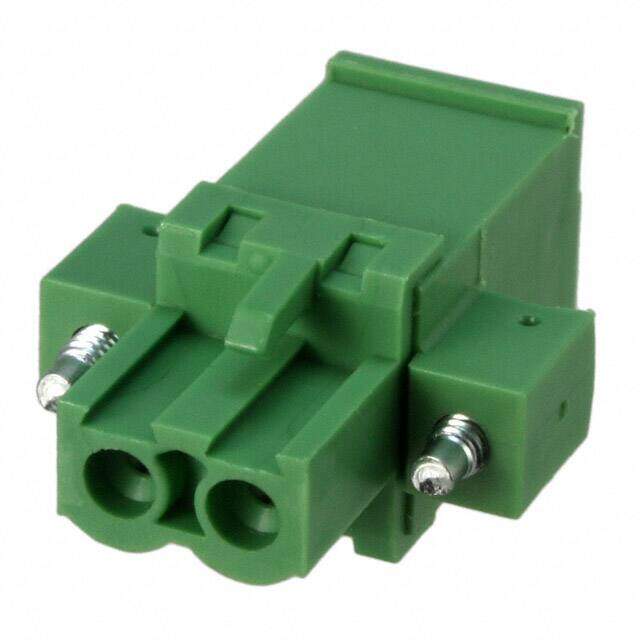

2 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm)270° Free Hanging (In-Line)
PDF
/
Inventory: 4921
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Max Supply Voltage (AC) 300V
Screw Size M3
Number of Positions Per Level 2
Wire Strip Length 6-7mm
Wire Gauge or Range - mm2 1-2.5mm2
Plug Wire Entry 270°
Positions Per Level 2
Torque - Screw 0.4 Nm (3.5 Lb-In)
Current - UL 12A
Wire Gauge or Range - AWG 12-24 AWG
Voltage - UL 300V
Contact Mating Finish Tin
Wire/Cable Gauge 24 AWG
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 24 AWG
Current 12A
Number of Levels 1
Max Current Rating 12A
Number of Circuits 2
Voltage 300V
Housing Color Green
Number of Contacts 2
Termination Style Screw - Rising Cage Clamp
Current Rating 8A
Insulation Height 1.024 26.01mm
Depth 12.6mm
Orientation Straight
Pitch 0.200 5.08mm
Voltage - Rated 300V
Number of Rows 1
Color Green
Min Operating Temperature -40°C
Max Operating Temperature 115°C
Number of Positions 2
Type Plug, Female Sockets
Connector Type Terminal Block
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Mating Flange, Retention Latches (Non-Wire Side)
Series 02-508
Packaging Bulk
Operating Temperature -40°C~115°C
Dimensions
Length 20.26mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Physical
Housing Material Thermoplastic Resin
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Tin
Contact Material Copper Alloy
