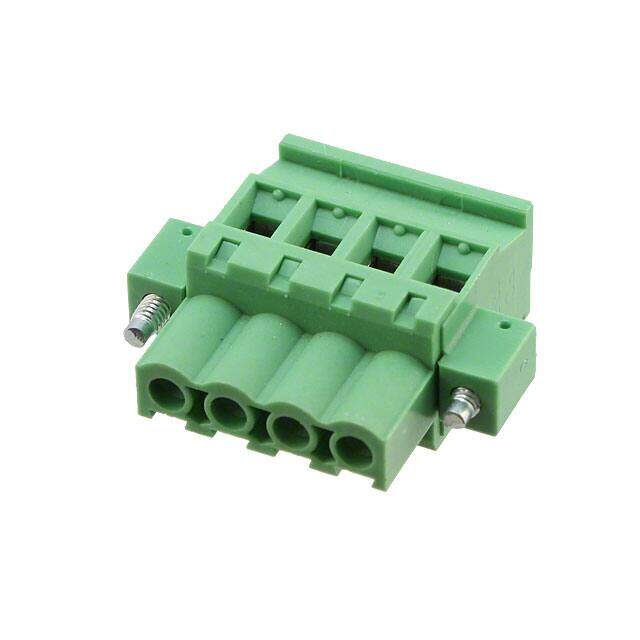

20020011-G041B01LF
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
4 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm)270° Free Hanging (In-Line)
PDF
/
Buying Options
Total Price: USD $1.63
Unit Price: USD $1.626758
≥1 USD $1.626758
≥10 USD $1.534672
≥100 USD $1.447807
≥500 USD $1.365856
≥1000 USD $1.288536
Inventory: 6085
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Length 29.6mm
Technical
Max Supply Voltage (AC) 300V
Wire Cross Section 2.5 mm2
Screw Size M3
Wire Strip Length 6-7mm
Wire Gauge or Range - mm2 1-2.5mm2
Plug Wire Entry 270°
Safety Approval UL
Number of Ways 4
Torque - Screw 0.4 Nm (3.5 Lb-In)
Wire Gauge or Range - AWG 12-24 AWG
Number of Decks 1
Contact Mating Finish Tin
Wire/Cable Gauge 24 AWG
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 24 AWG
Current 12A
Number of Levels 1
Max Current Rating 12A
Max Voltage Rating (AC) 300V
Voltage 300V
Number of Contacts 4
Termination Style Screw - Rising Cage Clamp
Current Rating 8A
Insulation Height 1.024 26.01mm
Depth 12.6mm
Orientation Straight
Pitch 0.197 5.00mm
Voltage - Rated 300V
Number of Rows 1
Color Green
Type Plug, Female Sockets
Connector Type Terminal Block
ECCN Code EAR99
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating Flange, Retention Latches (Non-Wire Side)
Series 02-500
Packaging Bulk
Operating Temperature -40°C~115°C
Physical
Housing Material Thermoplastic Resin
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Material Copper Alloy
