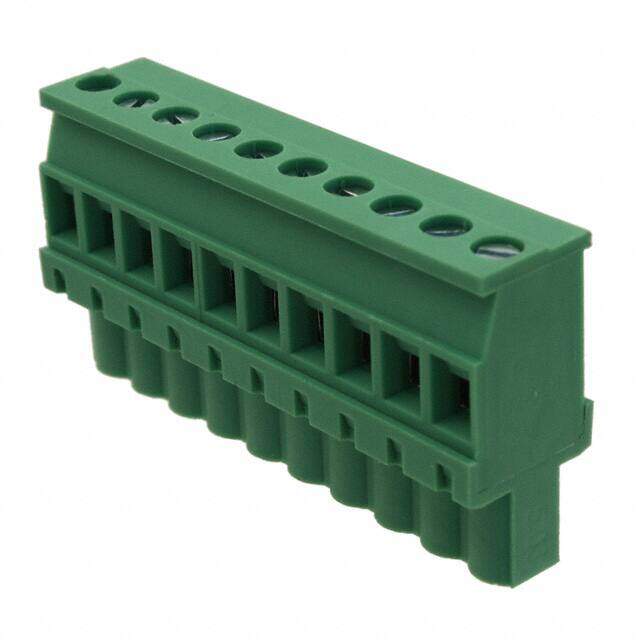

20020010-H101B01LF
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
10 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm)270° Free Hanging (In-Line)
PDF
/
Buying Options
Total Price: USD $3.08
Unit Price: USD $3.084207
≥1 USD $3.084207
≥10 USD $2.909631
≥100 USD $2.744934
≥500 USD $2.589562
≥1000 USD $2.442971
Inventory: 8760
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Length 50.8mm
Technical
Screw Size M3
Number of Positions Per Level 10
Wire Strip Length 6-7mm
Wire Gauge or Range - mm2 1-2.5mm2
Plug Wire Entry 270°
Positions Per Level 10
Torque - Screw 0.4 Nm (3.5 Lb-In)
Current - UL 12A
Wire Gauge or Range - AWG 12-24 AWG
Voltage - UL 300V
Contact Mating Finish Tin
Wire/Cable Gauge 24 AWG
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 24 AWG
Current 12A
Number of Levels 1
Max Current Rating 12A
Max Supply Voltage 300V
Number of Circuits 10
Voltage 300V
Housing Color Green
Number of Contacts 10
Termination Style Screw - Rising Cage Clamp
Current Rating 8A
Insulation Height 1.024 26.01mm
Depth 12.6mm
Orientation Straight
Pitch 0.200 5.08mm
Voltage - Rated 300V
Number of Rows 1
Color Green
Min Operating Temperature -40°C
Max Operating Temperature 115°C
Number of Positions 10
Type Plug, Female Sockets
Connector Type Terminal Block
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Retention Latches (Non-Wire Side)
Series 02-508
Packaging Bulk
Operating Temperature -40°C~115°C
Physical
Housing Material Thermoplastic Resin
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Tin
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 10 Weeks
