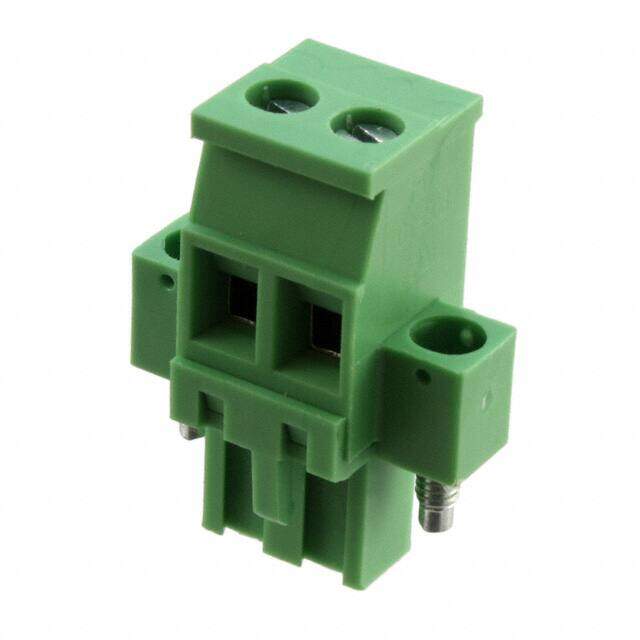

20020009-H021B01LF
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Terminal Block, Plug, 2 Position, 24-12Awg
PDF
/
Inventory: 2543
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Length 19.82mm
Technical
Max Supply Voltage (AC) 300V
Screw Size M3
Wire Strip Length 6-7mm
Wire Gauge or Range - mm2 1-2.5mm2
Plug Wire Entry 90°
Safety Approval UL
Number of Ways 2
Torque - Screw 0.4 Nm (3.5 Lb-In)
Wire Gauge or Range - AWG 12-24 AWG
Number of Decks 1
Contact Mating Finish Tin
Wire/Cable Gauge 24 AWG
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 24 AWG
Current 12A
Number of Levels 1
Max Current Rating 12A
Max Voltage Rating (AC) 300V
Voltage 300V
Number of Contacts 2
Termination Style Screw - Rising Cage Clamp
Current Rating 8A
Insulation Height 1.024 26.01mm
Depth 26mm
Orientation Straight
Pitch 0.200 5.08mm
HTS Code 8536.69.40.40
Voltage - Rated 300V
Number of Rows 1
Color Green
Type Plug, Female Sockets
Connector Type Terminal Block
ECCN Code EAR99
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Mating Flange, Retention Latches (Wire Side)
Series 02-508
Published 2011
Packaging Bulk
Operating Temperature -40°C~115°C
Physical
Housing Material Thermoplastic Resin
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 21 Weeks
