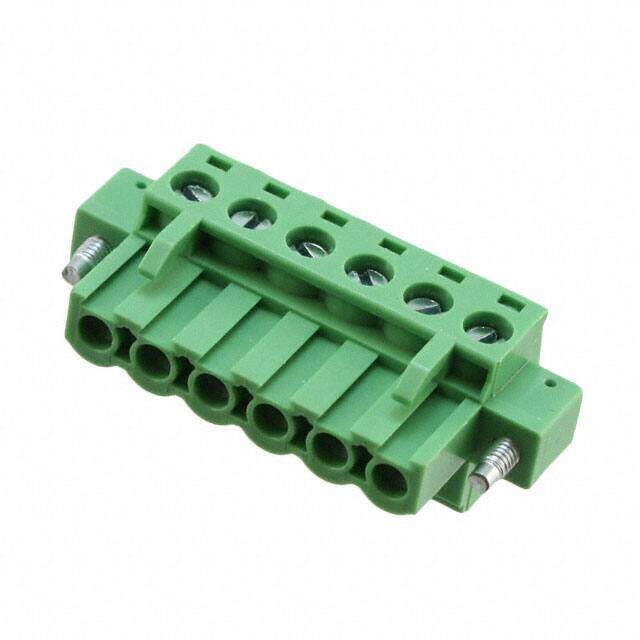

20020003-H061B01LF
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
6 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm)180° Free Hanging (In-Line)
PDF
/
Buying Options
Total Price: USD $1.78
Unit Price: USD $1.781265
≥1 USD $1.781265
≥10 USD $1.680437
≥100 USD $1.585317
≥500 USD $1.495581
≥1000 USD $1.410929
Inventory: 6231
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Tin
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Thermoplastic Resin
Technical
Operating Temperature -40°C~115°C
Packaging Bulk
Series 01-508
Feature Mating Flange, Retention Latches (Non-Wire Side)
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Connector Type Terminal Block
Type Plug, Female Sockets
Number of Positions 6
Max Operating Temperature 115°C
Min Operating Temperature -40°C
Color Green
Number of Rows 1
Voltage - Rated 300V
Pitch 0.200 5.08mm
Orientation Right Angle
Depth 18.2mm
Insulation Height 0.594 15.09mm
Current Rating 12A
Termination Style Screw - Rising Cage Clamp
Number of Contacts 6
Housing Color Green
Voltage 300V
Number of Circuits 6
Number of Levels 1
Current 12A
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 12 AWG
Wire/Cable Gauge 24 AWG
Contact Mating Finish Tin
Voltage - UL 300V
Wire Gauge or Range - AWG 12-24 AWG
Current - UL 12A
Torque - Screw 0.56 Nm (5.0 Lb-In)
Positions Per Level 6
Plug Wire Entry 180°
Wire Gauge or Range - mm2 1-2.5mm2
Wire Strip Length 7-8mm
Number of Positions Per Level 6
Screw Size M3
Max Supply Voltage (AC) 300V
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
