20020003-G021B01LF
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

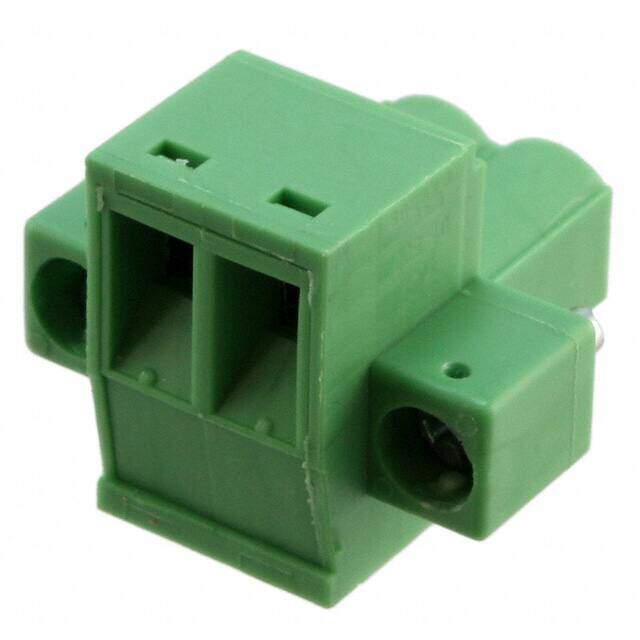

2 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm)180° Free Hanging (In-Line)
PDF
/
Inventory: 2804
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material Copper Alloy
Mounting Type Free Hanging (In-Line)
Housing Material Thermoplastic Resin
Technical
Operating Temperature -40°C~115°C
Packaging Bulk
Series 01-500
Feature Mating Flange, Retention Latches (Non-Wire Side)
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Plug, Female Sockets
Number of Positions 2
Color Green
Number of Rows 1
HTS Code 8536.69.40.40
Pitch 0.197 5.00mm
Insulation Height 0.594 15.09mm
Termination Style Screw - Rising Cage Clamp
Number of Levels 1
Contact Mating Finish Tin
Voltage - UL 300V
Number of Decks 1
Wire Gauge or Range - AWG 12-24 AWG
Current - UL 12A
Torque - Screw 0.56 Nm (5.0 Lb-In)
Number of Ways 2
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 1-2.5mm2
Wire Strip Length 7-8mm
Screw Size M3
Rated Voltage 300V
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
