20020002-H081B01LF
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

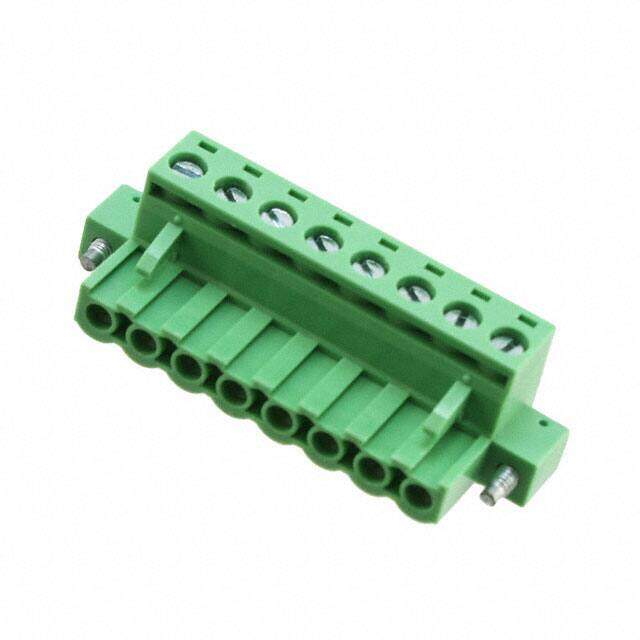

8 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm)180° Free Hanging (In-Line)
PDF
/
Buying Options
Total Price: USD $2.23
Unit Price: USD $2.225407
≥1 USD $2.225407
≥10 USD $2.099443
≥100 USD $1.980602
≥500 USD $1.868495
≥1000 USD $1.762728
Inventory: 8862
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Technical
Rated Voltage 300V
Wire Cross Section 2.5 mm2
Screw Size M3
Wire Strip Length 7-8mm
Wire Gauge or Range - mm2 1-2.5mm2
Plug Wire Entry 180°
Safety Approval UL
Number of Ways 8
Torque - Screw 0.56 Nm (5.0 Lb-In)
Current - UL 12A
Wire Gauge or Range - AWG 12-24 AWG
Number of Decks 1
Voltage - UL 300V
Contact Mating Finish Tin
Number of Levels 1
Termination Style Screw - Rising Cage Clamp
Insulation Height 0.594 15.09mm
Pitch 0.200 5.08mm
Additional Feature THERMOPLASTIC, UL 94V-0
Number of Rows 1
Color Green
Number of Positions 8
Type Plug, Female Sockets
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Mating Flange, Retention Latches (Non-Wire Side)
Series 01-508
Packaging Bulk
Operating Temperature -40°C~115°C
Physical
Housing Material Thermoplastic Resin
Mounting Type Free Hanging (In-Line)
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 10 Weeks
