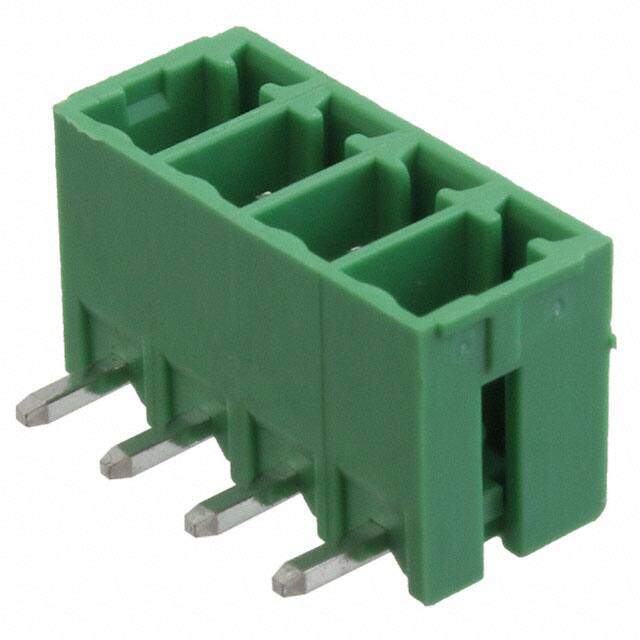

EBSA-04-B
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Terminal Block Header
PDF
/
Buying Options
Total Price: USD $0.6
Unit Price: USD $0.601308
≥1 USD $0.601308
≥150 USD $0.240261
≥450 USD $0.232383
≥1050 USD $0.228445
Inventory: 1526
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Technical
Header Orientation 90°, Right Angle
Current - UL 8A
Voltage - UL 300V
Contact Mating Finish Tin
Number of Levels 1
Contact Tail Length 0.138 3.50mm
Termination Style Solder
Insulation Height 0.276 7.00mm
Pitch 0.150 3.81mm
Color Green
Number of Positions 4
Type Header, Male Pins, Shrouded (4 Side)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series EB
Packaging Bulk
Operating Temperature -40°C~105°C
Physical
Housing Material Polyamide (PA66), Nylon 6/6
Mounting Type Through Hole
Contact Material Brass
Supply Chain
Factory Lead Time 9 Weeks
