3046149
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Din Rail, Channel
Description

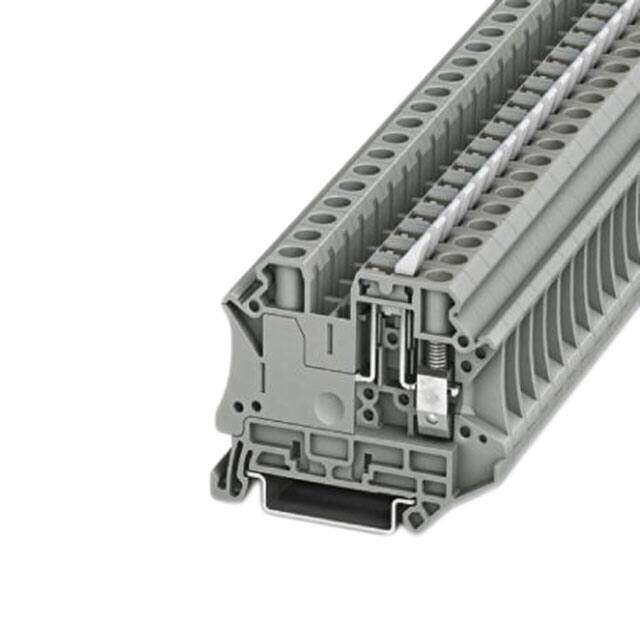

CLIPLINE UT RoHS Compliant 2016 Polyamide (PA) Nylon Terminal Block Disconnect UL94V-0 24AWG 16A 600V
PDF
/
Buying Options
Total Price: USD $5.85
Unit Price: USD $5.846133
≥1 USD $5.846133
≥10 USD $5.515215
≥100 USD $5.203039
≥500 USD $4.908519
≥1000 USD $4.630685
Inventory: 1219
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Material - Insulation Polyamide (PA), Nylon
Technical
Published 2016
Series CLIPLINE UT
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Disconnect
Number of Positions 2
Color Gray
Reach Compliance Code not_compliant
Termination Style Screw
Voltage 600V
Number of Levels 1
Current 16A
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 8 AWG
Voltage - UL 600V
Wire Gauge or Range - AWG 8-24 AWG
Voltage - IEC 500V
Wire Gauge or Range - mm2 0.2-10mm2
Current - IEC 20A
Stripping Length 10mm
Disconnect Type Switch, Knife
Dimensions
Terminal Width 8.2mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
