RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Din Rail, Channel

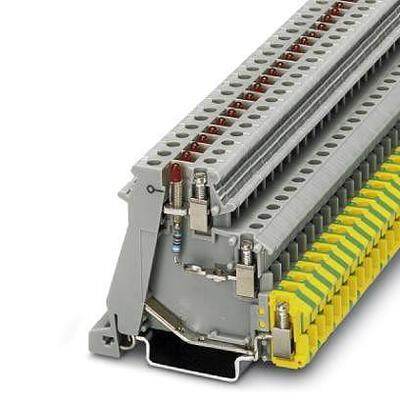

Description DIN Rail Terminal Blocks DOK 1.5-LA 24RD/O-M
PDF
/
Inventory: 8732
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Flammability Rating UL94 V-2
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-2

Dimensions

Width 6.2mm
Length 61.5mm

Technical

Stripping Length 8mm
Current - IEC 24A
Wire Gauge or Range - mm2 0.2-4mm2
Safety Approval UL
Number of Ways 4
Voltage - IEC 250V
Wire Gauge or Range - AWG 14-30 AWG
Number of Decks 3
Wire Gauge (Min) 14 AWG
Wire Gauge (Max) 30 AWG
Current 15A
Number of Levels 3; 2 Connected, 1 Grounded
Voltage 300V
Termination Style Screw
Current Rating 26A
Voltage - Rated 250V
Number of Rows 3
Color Gray
Number of Positions 4
Type Feed Through, Isolated
ECCN Code EAR99
Part Status Active
Pbfree Code yes
Feature LED
Series CLIPLINE DOK
Published 2011

Physical

Material - Insulation Polyamide (PA), Nylon
Weight 1.000171kg

Supply Chain

Factory Lead Time 4 Weeks
