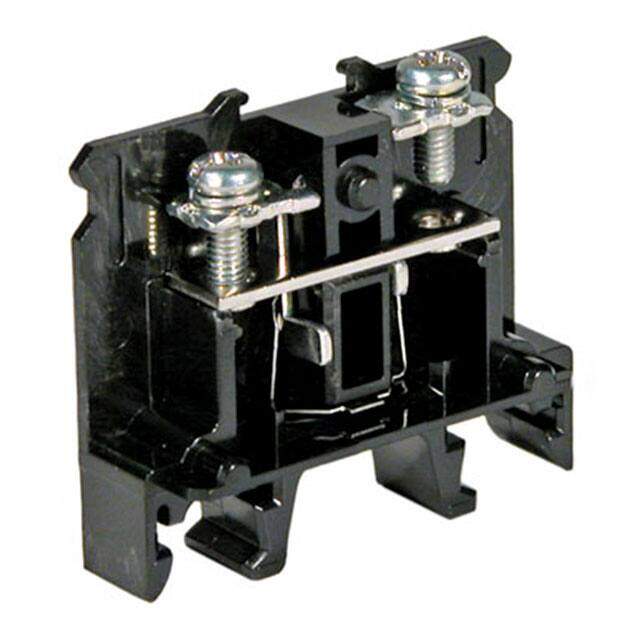

BNH15MW
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Din Rail, Channel
Description
BN SERIES TERMINAL BLOCK
PDF
/
Buying Options
Total Price: USD $1.8
Unit Price: USD $1.7952
≥1 USD $1.7952
≥10 USD $1.3552
≥100 USD $1.102112
≥500 USD $0.799031
≥1000 USD $0.702592
≥3000 USD $0.68882
Inventory: 178
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Cable
Material - Insulation Polyphenylene Ether (PPE)
Technical
Published 2005
Series BNH
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
ECCN Code EAR99
Type Feed Through
Number of Positions 2
Color Black
Voltage - Rated 600V
HTS Code 8536.69.40.40
Pitch 18mm
Current Rating 10A
Termination Style Screw
Number of Contacts 1
Max Current Rating 10A
Wire/Cable Gauge 22 AWG
Voltage - UL 600V
Wire Gauge or Range - AWG 14-22 AWG
Dimensions
Terminal Width 8.0mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
