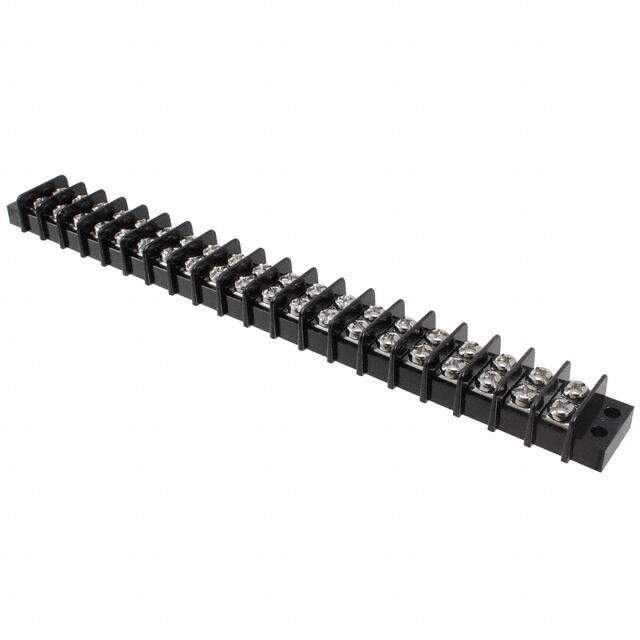

2-1546306-0 image
Favorite
2-1546306-0 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Barrier Blocks
Description Conn Barrier Strip 40 POS 9.53mm Screw ST Panel Mount 20A/Contact
PDF
/
Buying Options
Total Price: USD $15.59
Unit Price: USD $15.591504
≥1 USD $15.591504
≥10 USD $14.708966
≥100 USD $13.876374
≥500 USD $13.090923
≥1000 USD $12.349932
Inventory: 6306
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 14 Weeks
Lifecycle Status ACTIVE (Last Updated: 1 week ago)

Physical

Contact Material Brass
Contact Plating Tin
Mount Chassis, Panel
Mounting Type Chassis, Panel
Material Thermoplastic
Housing Material Thermoplastic
Material - Insulation Thermoplastic
Terminal Screw Material Steel
Terminal Material Brass

Technical

Operating Temperature -40°C~120°C
Packaging Bulk
Published 2006
Series Buchanan
Feature Flange
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Connector Type Terminal Block
Number of Positions 20
Max Operating Temperature 248°C
Min Operating Temperature -40°C
Color Black
Number of Rows 2
Voltage - Rated 300V
Current Rating (Amps) 20A
Pitch 0.374 9.50mm
Orientation Straight
Depth 21.8mm
Current Rating 20A
Approval Agency UL
Number of Contacts 20
Housing Color Black
Wire Gauge 12-22 AWG
Voltage 300V
ELV Compliant
Number of Circuits 20
Max Voltage Rating (AC) 300V
Max Current Rating 20A
Number of Levels 1
Current 20A
Wire Gauge (Max) 22 AWG
Wire Gauge (Min) 12 AWG
Wire/Cable Gauge 22 AWG
Number of Poles 20
Terminal Block Type Barrier Block
Bottom Termination Closed
Barrier Type 2 Wall (Dual)
Top Termination Screws
Terminal Screw Finish Nickel
Number of Wire Entries 40
Max Supply Voltage (AC) 300V

Dimensions

Length 207mm

Compliance

Material Flammability Rating UL94 V-0
Radiation Hardening No
REACH SVHC Unknown
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
