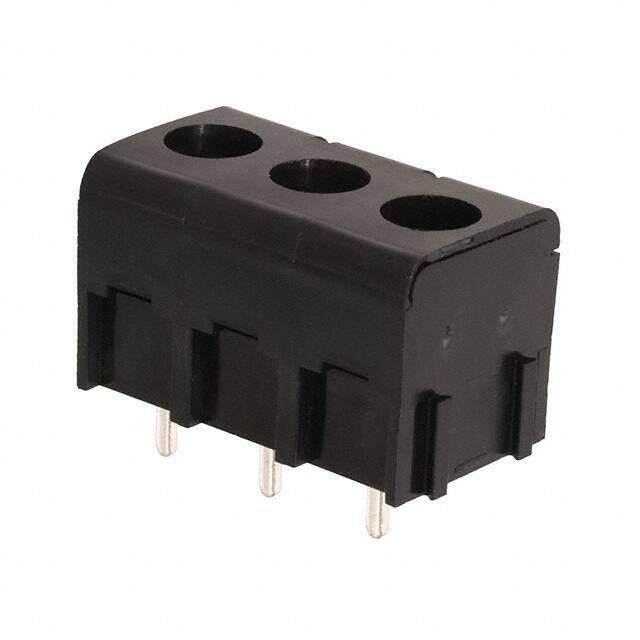

1546833-3
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Barrier Blocks
Description
Conn Barrier Strip 3 POS 9.53mm Solder ST Thru-Hole 15A Package
PDF
/
Buying Options
Total Price: USD $1.59
Unit Price: USD $1.5928
≥1 USD $1.5928
≥10 USD $1.42384
≥100 USD $1.416448
≥500 USD $1.402016
≥1000 USD $1.286472
≥3000 USD $1.279194
Inventory: 4313
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Nylon
Material - Insulation Polyamide (PA), Nylon
Terminal Screw Material Steel
Technical
Operating Temperature 120°C
Packaging Bulk
Published 2007
Series Buchanan
Feature Cover
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Number of Positions 3
Max Operating Temperature 120°C
Min Operating Temperature -40°C
Color Black
Number of Rows 1
Voltage - Rated 300V
Current Rating (Amps) 15A
Pitch 0.375 9.53mm
Orientation Straight
Current Rating 15A
Number of Contacts 3
Housing Color Black
Wire Gauge 14-22 AWG
Voltage 300V
ELV Compliant
Number of Circuits 3
Max Current Rating 15A
Number of Levels 1
Wire Gauge (Max) 22 AWG
Wire Gauge (Min) 14 AWG
Terminal Block Type Barrier Block
Bottom Termination PC Pin
Barrier Type 3 Wall (Tri)
Top Termination Screws with Captive Plate
Thread Size M3.5
Terminal Screw Finish Nickel
Number of Wire Entries 3
Dimensions
Length 28.575mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
