3240183
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Barrier Blocks
Description

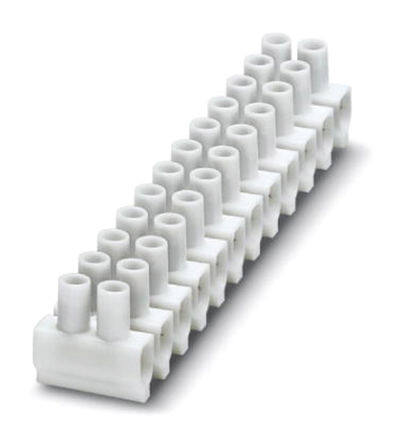

CLIPLINE EC RoHS Compliant 2011 M5 Terminal Block Eurostyle Terminal Strip 8AWG 101A 750V 28mm
PDF
/
Buying Options
Total Price: USD $32.61
Unit Price: USD $32.608497
≥1 USD $32.608497
≥200 USD $13.010839
≥500 USD $12.576269
≥1000 USD $12.362266
Inventory: 7792
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mount Chassis, Panel
Mounting Type Chassis, Panel
Material PP
Material - Insulation Polypropylene (PP)
Technical
Packaging Bulk
Published 2011
Series CLIPLINE EC
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Color White
Number of Rows 2
Voltage - Rated 750V
Depth 28mm
Reach Compliance Code not_compliant
Current Rating 101A
Wire Gauge 4-8 AWG
Number of Circuits 12
Wire Gauge (Max) 8 AWG
Wire Gauge (Min) 4 AWG
Terminal Block Type Eurostyle Terminal Strip
Bottom Termination Closed
Barrier Type Enclosed
Top Termination Screws
Thread Size M5
Number of Wire Entries 24
Dimensions
Length 187.3mm
Width 30mm
Compliance
RoHS Status RoHS Compliant
