3240174
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Barrier Blocks
Description

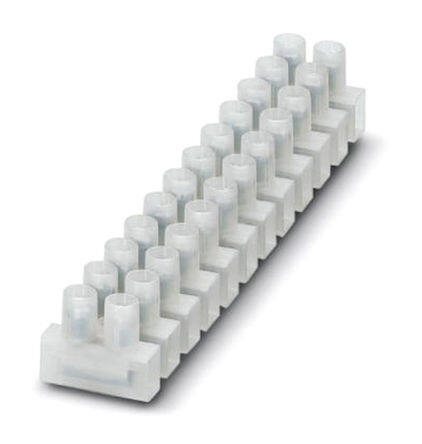

CONN TERM STRIP 12CIRCUIT
PDF
/
Buying Options
Total Price: USD $3.85
Unit Price: USD $3.853362
≥1 USD $3.853362
≥200 USD $1.537406
≥500 USD $1.486203
≥1000 USD $1.461258
Inventory: 1157
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mount Chassis, Panel
Mounting Type Chassis, Panel
Material Polyamide
Material - Insulation Polyamide (PA), Nylon
Technical
Packaging Bulk
Published 2011
Series CLIPLINE EC
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Color Transparent
Number of Rows 2
Voltage - Rated 300V
HTS Code 8536.69.40.40
Depth 15mm
Reach Compliance Code not_compliant
Current Rating 30A
Wire Gauge 10-20 AWG
Number of Circuits 12
Wire Gauge (Max) 20 AWG
Wire Gauge (Min) 10 AWG
Terminal Block Type Eurostyle Terminal Strip
Bottom Termination Closed
Barrier Type Enclosed
Top Termination Screws
Thread Size M3
Number of Wire Entries 24
Dimensions
Length 117mm
Width 18.6mm
Compliance
Material Flammability Rating UL94 V-2
RoHS Status RoHS Compliant
Flammability Rating UL94 V-2
