2716729
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Barrier Blocks
Description

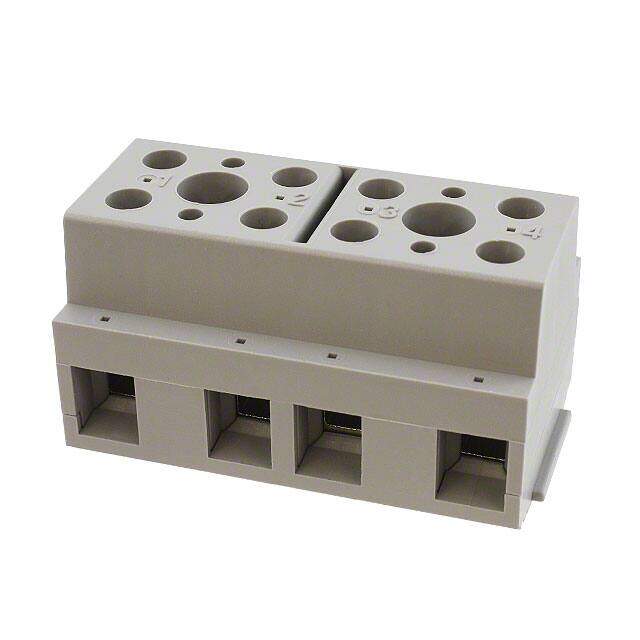

Fixed Terminal Blocks G 10/4
PDF
/
Buying Options
Total Price: USD $20.43
Unit Price: USD $20.4336
≥1 USD $20.4336
≥10 USD $18.79856
≥100 USD $17.36856
≥500 USD $16.551304
≥1000 USD $15.609018
Inventory: 50
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-2
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-2
Dimensions
Width 56.9976mm
Length 33mm
Height 31mm
Technical
Stripping Length 12mm
Safety Approval UL
Number of Ways 8
Top Termination Screws
Barrier Type Enclosed
Bottom Termination Closed
Terminal Block Type Barrier Block
Number of Decks 1
Wire/Cable Gauge 6 AWG
Wire Gauge (Min) 20 AWG
Wire Gauge (Max) 24 AWG
Current 65A
Max Current Rating 76A
Number of Circuits 4
Voltage 600V
Wire Gauge 6-24 AWG
Housing Color Grey
Approval Agency CSA, UL
Current Rating 76A
Number of Rows 2
Color Gray
Number of Positions 8
ECCN Code EAR99
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series G
Published 2008
Packaging Bulk
Physical
Material - Insulation Polyamide (PA), Nylon
Weight 71.999993g
Housing Material Nylon
Material Polyamide
Mounting Type Chassis, Panel
Mount Chassis, Panel, Surface Mount
Supply Chain
Factory Lead Time 7 Weeks
