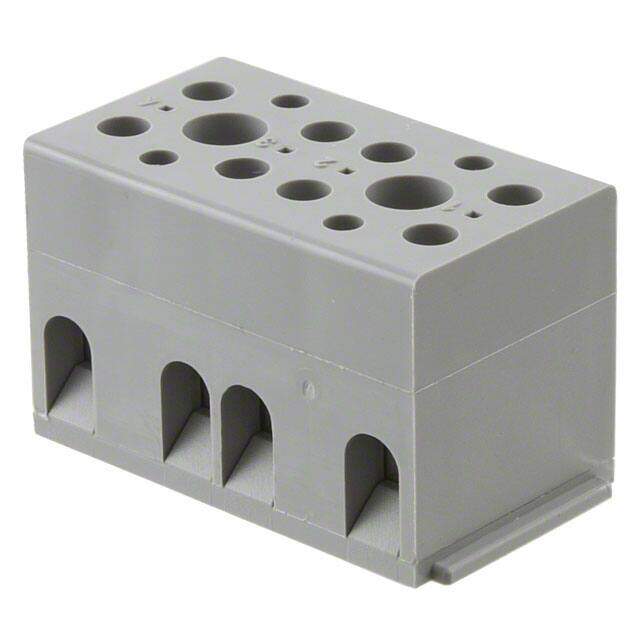

2716046
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Barrier Blocks
Description
Conn Terminal Blocks 8 POS Screw 32A
PDF
/
Buying Options
Total Price: USD $7.66
Unit Price: USD $7.656
≥1 USD $7.656
≥10 USD $7.4492
≥100 USD $6.96168
≥500 USD $6.404728
≥1000 USD $5.917437
≥3000 USD $5.638987
Inventory: 683
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-2
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-2
Dimensions
Width 38mm
Length 22mm
Height 24mm
Technical
Stripping Length 8mm
Safety Approval UL
Number of Ways 8
Top Termination Screws
Barrier Type Enclosed
Bottom Termination Closed
Terminal Block Type Barrier Block
Number of Decks 1
Wire/Cable Gauge 12 AWG
Wire Gauge (Min) 24 AWG
Wire Gauge (Max) 12 AWG
Current 30A
Max Current Rating 32A
Max Supply Voltage 500V
Number of Circuits 4
Voltage 300V
Wire Gauge 10-26 AWG
Housing Color Grey
Approval Agency CSA, UL, cULus
Current Rating 32A
Depth 22mm
Voltage - Rated 300V
Number of Rows 2
Color Gray
Number of Positions 8
Connector Type Screw
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series G
Published 2005
Packaging Bulk
Physical
Material - Insulation Polyamide (PA), Nylon
Weight 28.899986g
Housing Material Polyamide
Material Nylon, Polyamide
Mounting Type Chassis, Panel
Mount Chassis, Panel, Surface Mount
Supply Chain
Factory Lead Time 7 Weeks
