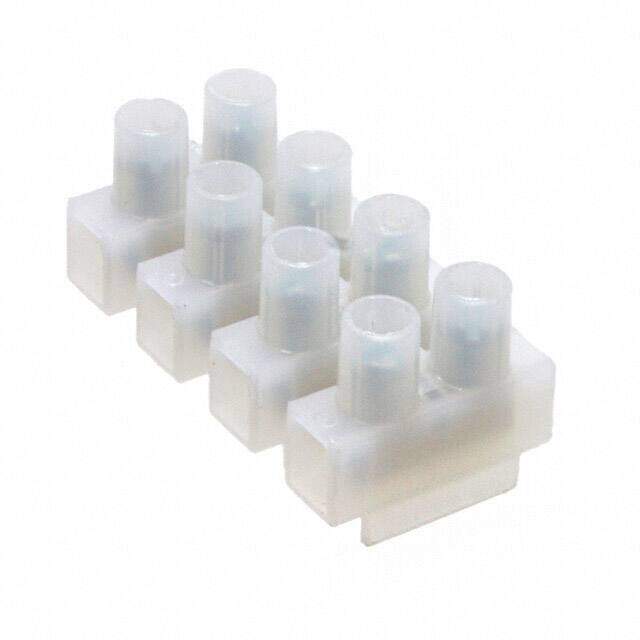

0391001204

Molex
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Barrier Blocks
Description CONN TERM STRIP 4CIRC 0.472"
PDF
/
Inventory: 8459
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Contact Material Brass
Contact Plating Nickel
Mount Cable, Chassis, Panel
Mounting Type Chassis, Panel
Housing Material Nylon
Material - Insulation Polyamide (PA66), Nylon 6/6
Terminal Screw Material Steel

Technical

Operating Temperature 100°C
Packaging Bulk
Series Eurostyle 39100
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Number of Positions 4
Color Clear
Number of Rows 2
Voltage - Rated 600V
Current Rating (Amps) 40A
Pitch 0.472 12.00mm
Orientation Vertical
Current Rating 40A
Number of Contacts 4
Housing Color Clear
Wire Gauge 8-20 AWG
Number of Circuits 4
Wire Gauge (Max) 20 AWG
Wire Gauge (Min) 8 AWG
Terminal Block Type Eurostyle Terminal Strip
Bottom Termination Closed
Barrier Type Enclosed
Top Termination Screws
Terminal Screw Finish Zinc
Number of Wire Entries 8

Compliance

Material Flammability Rating UL94 V-2
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-2
Lead Free Lead Free
