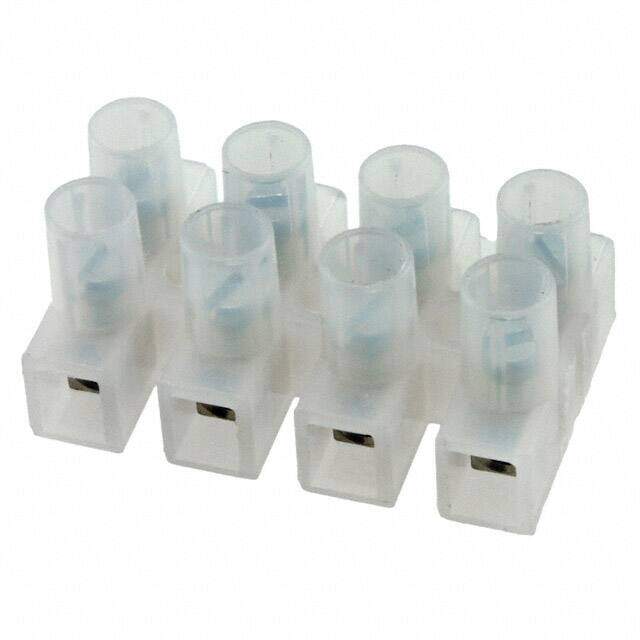

0391000904
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Barrier Blocks
Description
CONN TERM STRIP 4CIRC 0.315"
PDF
/
Inventory: 2684
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-2
Technical
Number of Wire Entries 8
Terminal Screw Finish Zinc
Number of Ways 4
Top Termination Screws
Barrier Type Enclosed
Bottom Termination Closed
Terminal Block Type Eurostyle Terminal Strip
Number of Decks 1
Number of Circuits 4
Wire Gauge 12-22 AWG
Reach Compliance Code unknown
Pitch 0.315 8.00mm
Current Rating (Amps) 20A
Additional Feature LOW PROFILE
Voltage - Rated 300V
Number of Rows 2
Color Clear
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Series Eurostyle 39100
Packaging Bulk
Operating Temperature 100°C
Physical
Terminal Screw Material Steel
Material - Insulation Polyamide (PA66), Nylon 6/6
Mounting Type Chassis, Panel
