0386608806
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Barrier Blocks
Description

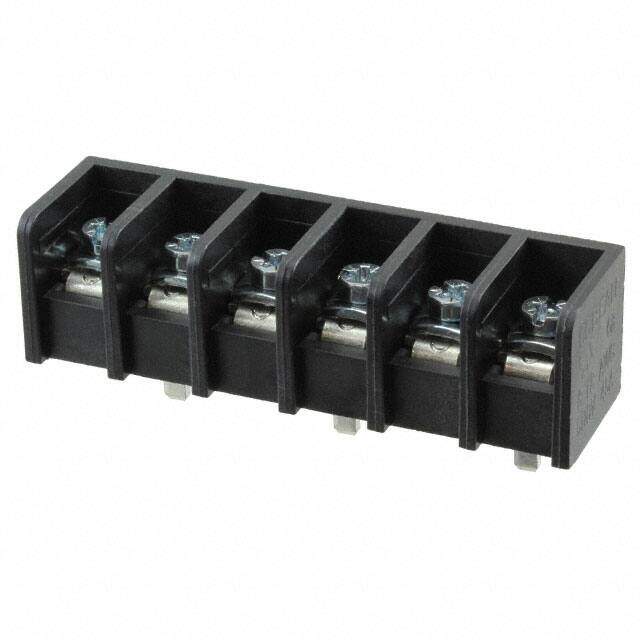

Conn Barrier Strip 6 POS 25.4mm Solder ST Thru-Hole 45A/Contact
PDF
/
Buying Options
Total Price: USD $8.91
Unit Price: USD $8.9144
≥1 USD $8.9144
≥10 USD $7.84256
≥100 USD $7.396928
≥500 USD $7.04044
≥1000 USD $6.906627
≥3000 USD $6.015469
Inventory: 973
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mounting Type Through Hole
Material - Insulation Polybutylene Terephthalate (PBT)
Terminal Screw Material Steel
Technical
Operating Temperature -40°C~110°C
Packaging Bulk
Series Beau 38660
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Color Black
Number of Rows 1
Voltage - Rated 600V
Additional Feature POLYSULFONE
Current Rating (Amps) 45A
Pitch 0.500 12.70mm
Reach Compliance Code unknown
Wire Gauge 8-18 AWG
Number of Circuits 6
Number of Decks 1
Terminal Block Type Barrier Block
Bottom Termination PC Pin
Barrier Type 3 Wall (Tri)
Top Termination Screws with Captive Plate
Number of Ways 6
Rated Current 45A
Terminal Screw Finish Zinc, Yellow Chromate
Compliance
RoHS Status ROHS3 Compliant
