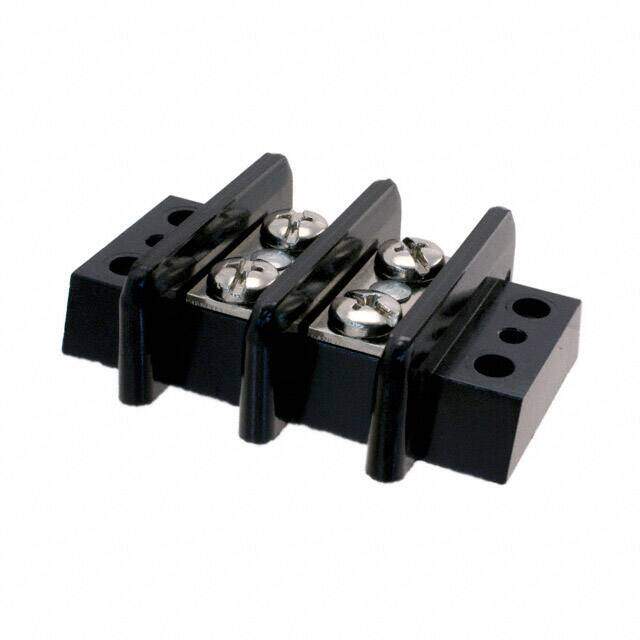

0382800102
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Barrier Blocks
Description
Conn Barrier Strip 4 POS 17.46mm Screw ST Panel Mount
PDF
/
Inventory: 1324
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Technical
Number of Wire Entries 4
Terminal Screw Finish Nickel
Top Termination Screws
Barrier Type 2 Wall (Dual)
Bottom Termination Closed
Terminal Block Type Barrier Block
Number of Circuits 2
Wire Gauge 6 AWG
Pitch 0.688 17.48mm
Current Rating (Amps) 50A
Voltage - Rated 300V
Color Black
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Flange
Series Beau 38280
Packaging Bulk
Operating Temperature 105°C
Physical
Terminal Screw Material Brass
Material - Insulation Phenol Formaldehyde (Phenolic)
Mounting Type Chassis, Panel
