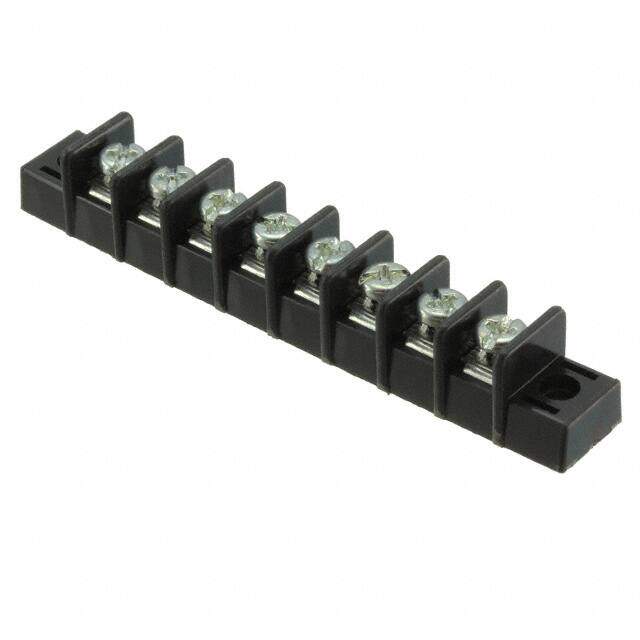

A10220807B7
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Barrier Blocks
Description
CONN BARRIER STRIP 8CIRC 0.325"
PDF
/
Inventory: 7547
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Material - Insulation Thermoplastic
Terminal Screw Material Steel
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Published 2014
Series Magnum? A1000
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 105°C
Min Operating Temperature -40°C
Color Black
Number of Rows 1
Voltage - Rated 250V
Current Rating (Amps) 20A
Pitch 0.325 8.26mm
Current Rating 20A
Wire Gauge 14-22 AWG
Number of Circuits 8
Wire Gauge (Max) 22 AWG
Wire Gauge (Min) 14 AWG
Terminal Block Type Barrier Block
Bottom Termination PC Pin
Barrier Type 2 Wall (Dual)
Top Termination Screws with Quick Connect Tabs
Terminal Screw Finish Zinc
Number of Wire Entries 8
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
