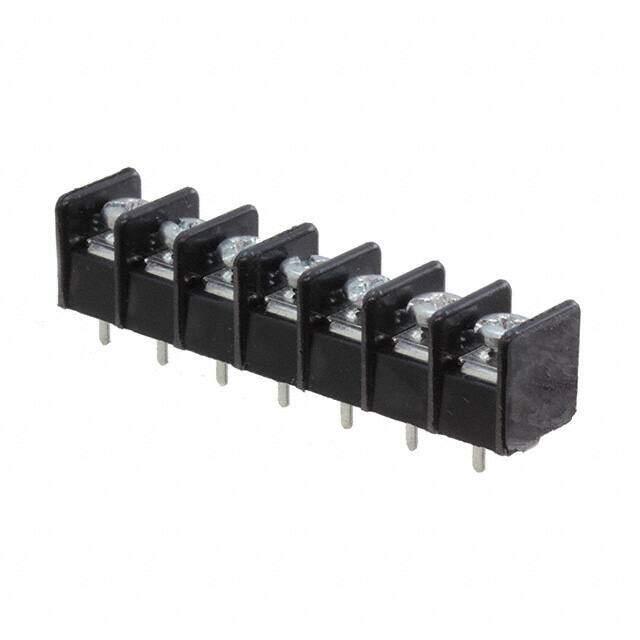

A102207 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Barrier Blocks
Description Conn Barrier Strip 7 POS 8.26mm Solder ST Thru-Hole 15A
PDF
/
Buying Options
Total Price: USD $7.13
Unit Price: USD $7.128
≥1 USD $7.128
≥10 USD $5.62232
≥100 USD $5.347584
≥500 USD $4.85408
≥1000 USD $4.662152
≥3000 USD $4.113648
Inventory: 132
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 16 Weeks

Physical

Mount Through Hole
Mounting Type Through Hole
Weight 453.59237mg
Material - Insulation Thermoplastic
Terminal Screw Material Steel

Technical

Operating Temperature -40°C~105°C
Packaging Bulk
Published 2014
Series Magnum? A1000
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Max Operating Temperature 105°C
Min Operating Temperature -40°C
Color Black
Number of Rows 1
Voltage - Rated 250V
Current Rating (Amps) 20A
Pitch 0.325 8.26mm
Orientation Straight
Current Rating 20A
Number of Contacts 7
Housing Color Black
Wire Gauge 14-22 AWG
Number of Circuits 7
Wire Gauge (Max) 22 AWG
Wire Gauge (Min) 14 AWG
Terminal Block Type Barrier Block
Bottom Termination PC Pin
Barrier Type 2 Wall (Dual)
Top Termination Screws
Terminal Screw Finish Zinc
Number of Wire Entries 7

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
