T38467-17-0
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Barrier Blocks
Description

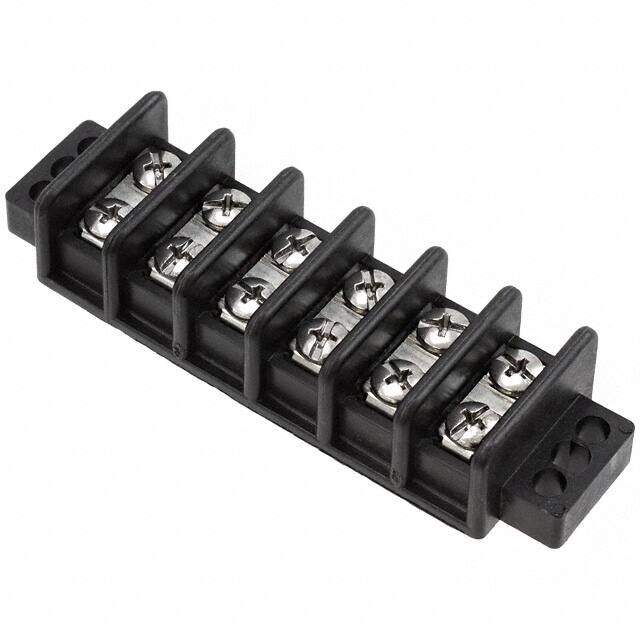

38000 ROHS3Compliant 2012 Flange Terminal Block Barrier Block UL94V-0 22AWG 105C 20A
PDF
/
Inventory: 4850
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Technical
Barrier Type 2 Wall (Dual)
Bottom Termination Wire Wrap, Insulated
Terminal Block Type Barrier Block
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 22 AWG
Number of Circuits 17
Wire Gauge 12-22 AWG
Current Rating 20A
Pitch 0.375 9.53mm
Voltage - Rated 300V
Number of Rows 1
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Flange
Series 38000
Published 2012
Packaging Bulk
Operating Temperature 105°C
Physical
Material - Insulation Polypropylene (PP)
Mounting Type Chassis, Panel
Mount Chassis, Panel
Supply Chain
Factory Lead Time 4 Weeks
