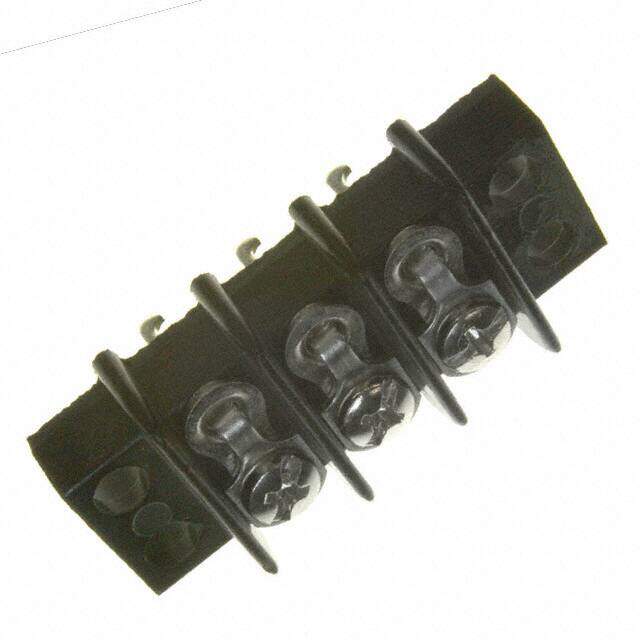

3-140-Y
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Barrier Blocks
Description
CONN BARRIER STRIP 3CIRC 0.375"
PDF
/
Buying Options
Total Price: USD $10.32
Unit Price: USD $10.324955
≥1 USD $10.324955
≥10 USD $9.740516
≥100 USD $9.189168
≥500 USD $8.669029
≥1000 USD $8.178326
Inventory: 6402
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Brass
Mount Chassis, Panel, Through Hole
Mounting Type Chassis, Panel; Through Hole
Housing Material Plastic
Material - Insulation Phenol Formaldehyde (Phenolic)
Terminal Screw Material Steel
Technical
Operating Temperature -55°F~300°F
Packaging Bulk
Published 2010
Series 140
Feature Flange
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder
ECCN Code EAR99
Connector Type Terminal Block
Number of Positions 3
Color Black
Number of Rows 1
Pitch 0.375 9.53mm
Orientation Straight
Current Rating 15A
Wire Gauge 16 AWG
Number of Circuits 3
Max Voltage Rating (AC) 250V
Max Current Rating 15A
Wire Gauge (Max) 16 AWG
Wire/Cable Gauge 16 AWG
Number of Decks 1
Terminal Block Type Barrier Block
Bottom Termination PC Pin
Barrier Type 2 Wall (Dual)
Top Termination Screws
Number of Ways 3
Safety Approval UL; CSA
Terminal Screw Finish Nickel
Dimensions
Height 10.3mm
Length 45.3mm
Width 22.2mm
Compliance
Material Flammability Rating UL94 V-1
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Flammability Rating UL94 V-1
Lead Free Lead Free
