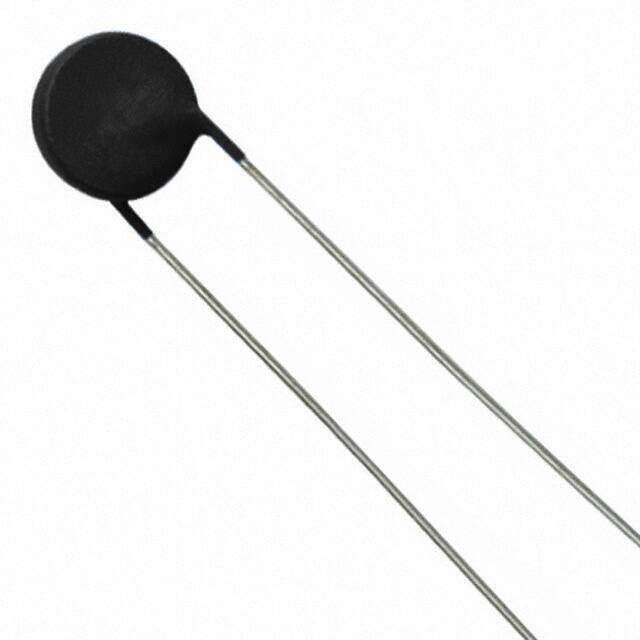

1DC103K-EC
RoHS
RoHS compliant
RoHS compliantPackage Disc, 2.5mm Dia x 0.8mm W
Category Sensors, Transducers / Temperature Sensors - NTC Thermistors
Description
NTC Thermistors 10Kohm 10% 3965 Beta EPOXY COATED
PDF
/
Buying Options
Total Price: USD $1.87
Unit Price: USD $1.8744
≥1 USD $1.8744
≥10 USD $1.40624
≥100 USD $1.2496
≥500 USD $1.18712
≥1000 USD $1.15588
≥3000 USD $1.1
Inventory: 1166
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mounting Type Through Hole
Package / Case Disc, 2.5mm Dia x 0.8mm W
Technical
Operating Temperature -55°C~150°C
Packaging Bulk
Tolerance 10%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Through Hole
Resistance 10kOhm
Lead Pitch 1.778mm
Lead Length 1.50 38.00mm
Power - Max 500mW
Resistance Tolerance ±10%
Resistance in Ω @ 25°C 10k
B Value Tolerance ±2%
B25/85 3974K
B25/50 3950K
B25/100 3986K
B25/75 3968K
B0/50 3880K
Dimensions
Diameter 2.54mm
Width 2.032mm
Compliance
RoHS Status ROHS3 Compliant
