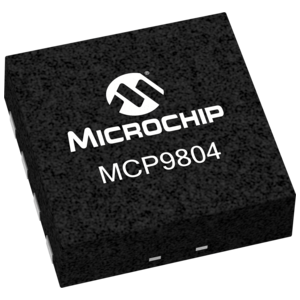

MCP9804-E/MCVAO
RoHS
RoHS compliant
RoHS compliantPackage 8-VFDFN Exposed Pad
Category Sensors, Transducers / Temperature Sensors - Analog and Digital Output
Description
SENSOR DIGITAL -40C-125C 8DFN
PDF
/
Inventory: 3231
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mounting Type Surface Mount
Package / Case 8-VFDFN Exposed Pad
Surface Mount YES
Technical
Operating Temperature -40°C~125°C
Packaging Tube
Series Automotive, AEC-Q100
JESD-609 Code e3
Feature Output Switch, Programmable Limit, Programmable Resolution, Shutdown Mode
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Terminal Finish Matte Tin (Sn)
Voltage - Supply 2.7V~5.5V
Base Part Number MCP9804
Body Length or Diameter 3mm
Body Breadth 2 mm
Output Type I2C/SMBus
Termination Type SOLDER
Number of Bits 16
Resolution 12 b
Sensor Type Digital, Local
Sensors/Transducers Type TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL
Test Condition -40°C ~ 125°C
Housing PLASTIC
Accuracy - Highest (Lowest) ±0.25°C (±1°C )
Sensing Temperature - Local -40°C~125°C
Accuracy-Max 1 Cel
Output Interface Type 2-WIRE INTERFACE
Dimensions
Body Height 1mm
Compliance
RoHS Status ROHS3 Compliant
