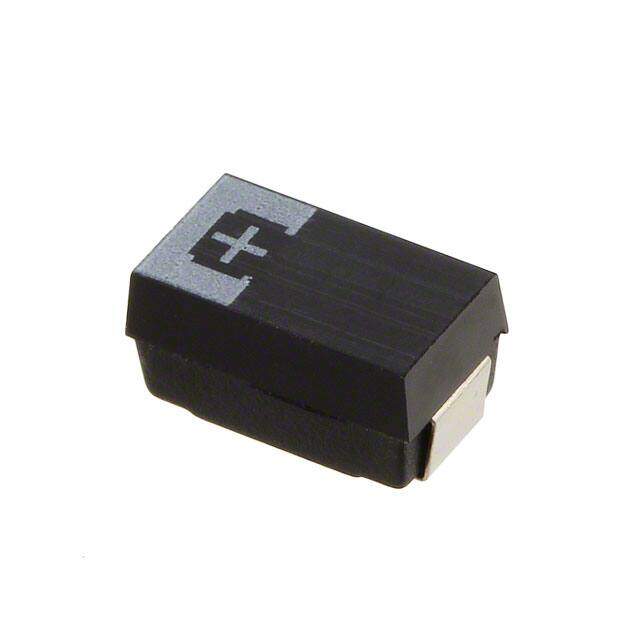

ETPF1000M6H image
Favorite
ETPF1000M6H image
Favorite
RoHS
RoHS RoHS compliant
Package 2917 (7343 Metric)
Category Capacitors / Tantalum - Polymer Capacitors
Description 2917 (7343Metric) POSCAP? TPF 2.5V 1000muF ±20% 0.287Lx0.169W 7.30mmx4.30mm
PDF
/
Buying Options
Total Price: USD $2.72
Unit Price: USD $2.7192
≥1 USD $2.7192
≥10 USD $2.08472
≥100 USD $1.883376
≥500 USD $1.62052
≥1000 USD $1.5422
Inventory: 42814
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 14 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case 2917 (7343 Metric)
Terminal Shape J BEND
Number of Pins 4
Dielectric Material TANTALUM (DRY/SOLID)

Technical

Operating Temperature -55°C~105°C
Packaging Cut Tape (CT)
Published 2013
Series POSCAP? TPF
Size / Dimension 0.287Lx0.169W 7.30mmx4.30mm
Tolerance ±20%
Feature General Purpose
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Molded
HTS Code 8532.21.00.50
Capacitance 1000μF
Voltage - Rated DC 2.5V
Packing Method TR
Depth 4.3mm
Case Code (Metric) 7343
Case Code (Imperial) 2917
ESR (Equivalent Series Resistance) 6mOhm @ 100kHz
Polarity Polar
Voltage 2.5V
Lifetime @ Temp 2000 Hrs @ 105°C
Leakage Current 2.5mA
Ripple Current 5.6A
Tan Delta 0.1
Dissipation Factor 10 %
Manufacturer Size Code D4

Dimensions

Height 3.8mm
Height Seated (Max) 0.157 4.00mm
Length 7.3mm

Compliance

Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free

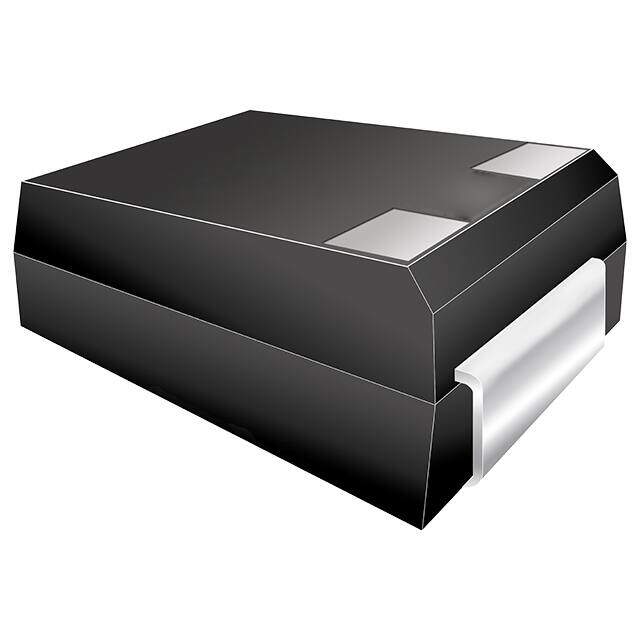

Alternative Model
