6TPE220MAP
RoHS
RoHS compliant
RoHS compliantPackage 2917 (7343 Metric)
Category Capacitors / Tantalum - Polymer Capacitors
Description
2917 (7343Metric) POSCAP? TPE 6.3V 220muF ±20% 0.287Lx0.169W 7.30mmx4.30mm
PDF
/
Buying Options
Total Price: USD $1.38
Unit Price: USD $1.3816
≥1 USD $1.3816
≥10 USD $1.03576
≥100 USD $0.944592
≥500 USD $0.773784
≥1000 USD $0.617584
≥3000 USD $0.544931
Inventory: 608
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Length 7.3mm
Height Seated (Max) 0.079 2.00mm
Height 1.8mm
Technical
Manufacturer Size Code D2E
Dissipation Factor 10 %
Tan Delta 0.1
Ripple Current 2.4A
Leakage Current 138.6μA
Lifetime @ Temp 1000 Hrs @ 85°C
Voltage 6.3V
Polarity Polar
ESR (Equivalent Series Resistance) 25mOhm @ 100kHz
Case Code (Imperial) 2917
Case Code (Metric) 7343
Depth 4.3mm
Packing Method TR, Embossed , 13 Inch
Voltage - Rated DC 6.3V
Capacitance 220μF
HTS Code 8532.21.00.50
Type Molded
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Feature General Purpose
Tolerance ±20%
Size / Dimension 0.287Lx0.169W 7.30mmx4.30mm
Series POSCAP? TPE
Published 2013
Packaging Cut Tape (CT)
Operating Temperature -55°C~105°C
Physical
Dielectric Material TANTALUM (SOLID POLYMER)
Terminal Shape J BEND
Package / Case 2917 (7343 Metric)
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 14 Weeks

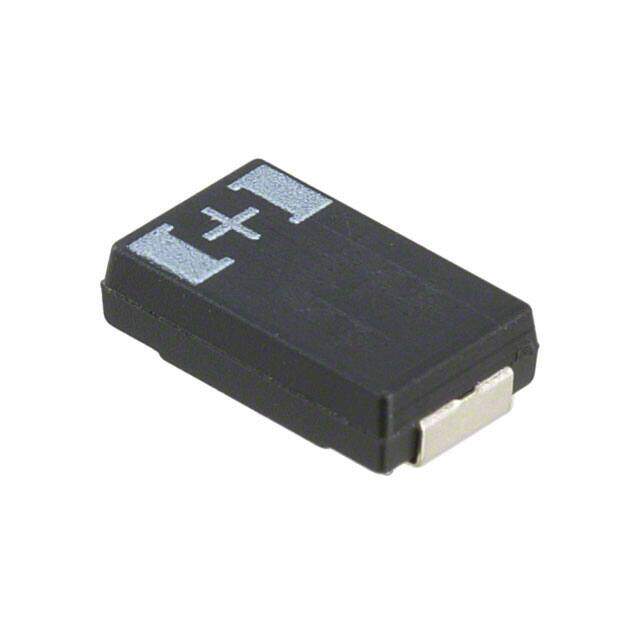

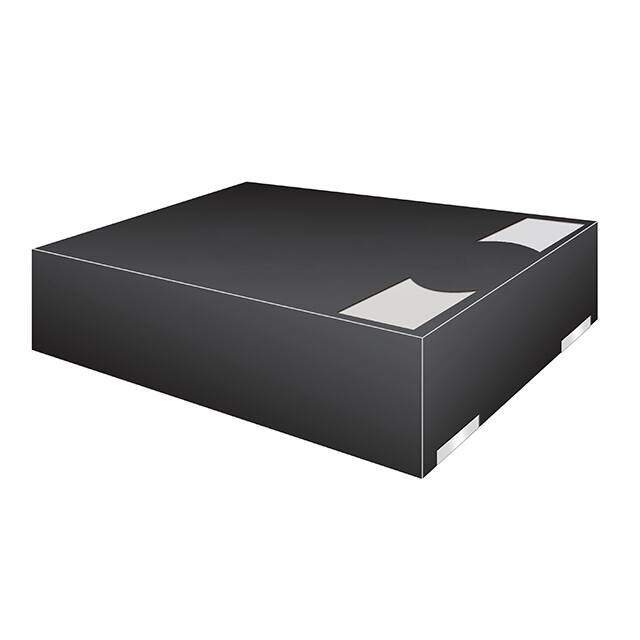

Alternative Model
