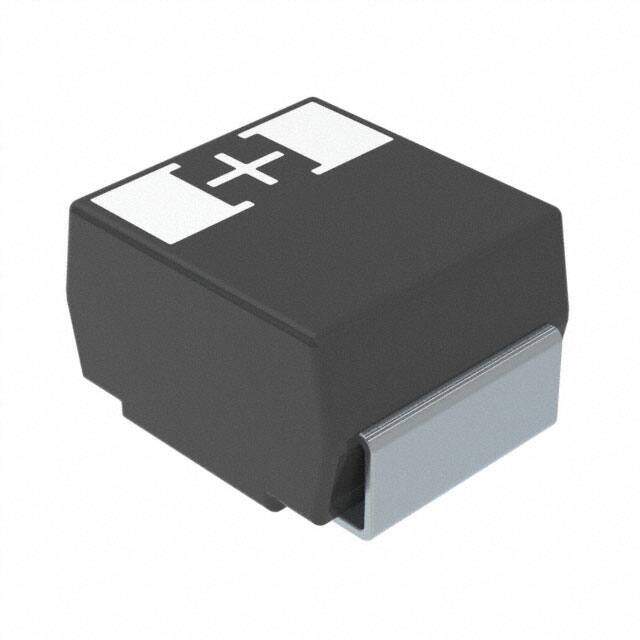

20TQC22MYFB
RoHS
RoHS compliant
RoHS compliantPackage 1411 (3528 Metric)
Category Capacitors / Tantalum - Polymer Capacitors
Description
1411 (3528Metric) POSCAP? TQC 20V 22muF ±20% 0.138Lx0.110W 3.50mmx2.80mm
PDF
/
Buying Options
Total Price: USD $1.72
Unit Price: USD $1.716
≥1 USD $1.716
≥10 USD $1.31648
≥100 USD $1.209472
≥500 USD $1.002848
≥1000 USD $0.806326
≥3000 USD $0.70554
Inventory: 1121
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 1411 (3528 Metric)
Terminal Shape WRAPAROUND
Number of Pins 2
Dielectric Material TANTALUM (SOLID POLYMER)
Technical
Operating Temperature -55°C~105°C
Packaging Tape & Reel (TR)
Published 2010
Series POSCAP? TQC
Size / Dimension 0.138Lx0.110W 3.50mmx2.80mm
Tolerance ±20%
Feature General Purpose
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Molded
Capacitance 22μF
Voltage - Rated DC 20V
Depth 2.8mm
Case Code (Metric) 3528
Case Code (Imperial) 1210
ESR (Equivalent Series Resistance) 80mOhm @ 100kHz
Polarity Polar
Voltage 20V
Lifetime @ Temp 2000 Hrs @ 105°C
Leakage Current 132μA
Ripple Current 1A
Life (Hours) 2000 hours
Tan Delta 0.1
Dissipation Factor 10 %
Manufacturer Size Code B2
Dimensions
Height 1.9mm
Height Seated (Max) 0.079 2.00mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
