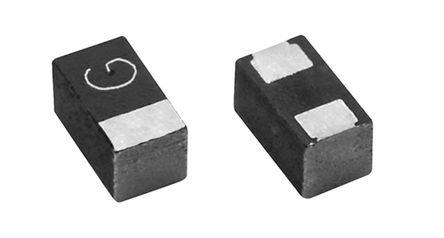

TP8M105M020C
RoHS
/
Package M
Category Capacitors / Tantalum Capacitors
Description
Solid Tantalum Surface Mount Capacitors MicroTan? Automotive Grade, Leadframeless Molded
PDF
/
Inventory: 5300
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Package / Case M
Dielectric Material Tantalum
Technical
Packaging Cut Tape
Published 2014
Tolerance 20%
Termination SMD/SMT
Max Operating Temperature 125°C
Min Operating Temperature -55°C
Voltage - Rated 20V
Capacitance 1μF
Voltage - Rated DC 20V
Depth 850μm
Lead Pitch 600μm
ESR (Equivalent Series Resistance) 12Ohm
Voltage 20V
Ripple Current 50mA
Dissipation Factor 6 %
Current - Leakage 500nA
Dimensions
Height 900μm
Length 1.6mm
Width 850μm
Compliance
REACH SVHC Unknown
RoHS Status RoHS Compliant
