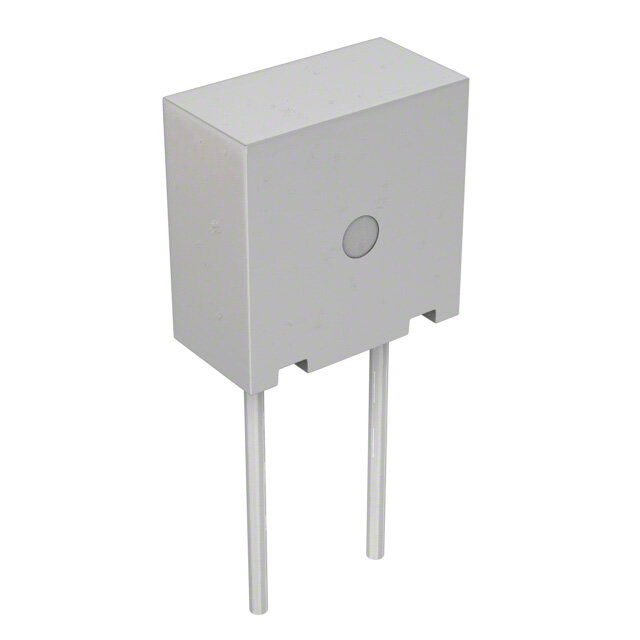

TIM106K025P0Y
RoHS
/
Package Radial
Category Capacitors / Tantalum Capacitors
Description
Radial TIM 25V 10muF ±10% 0.325Lx0.170W 8.26mmx4.32mm
PDF
/
Inventory: 4505
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Terminal Shape WIRE
Dielectric Material Tantalum
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2013
Series TIM
Size / Dimension 0.325Lx0.170W 8.26mmx4.32mm
Tolerance ±10%
Feature General Purpose
Pbfree Code no
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Type Molded
Capacitance 10μF
Voltage - Rated DC 25V
Packing Method TR, 14 INCH
Lead Pitch 5.08mm
ESR (Equivalent Series Resistance) 66Ohm
Polarity POLARIZED
Lead Spacing 0.200 5.08mm
Leakage Current 1μA
Ripple Current 240mA
Tan Delta 0.06
Dissipation Factor 6 %
Manufacturer Size Code Y
Dimensions
Height 4.32mm
Height Seated (Max) 0.340 8.64mm
Length 8.26mm
Compliance
RoHS Status Non-RoHS Compliant
