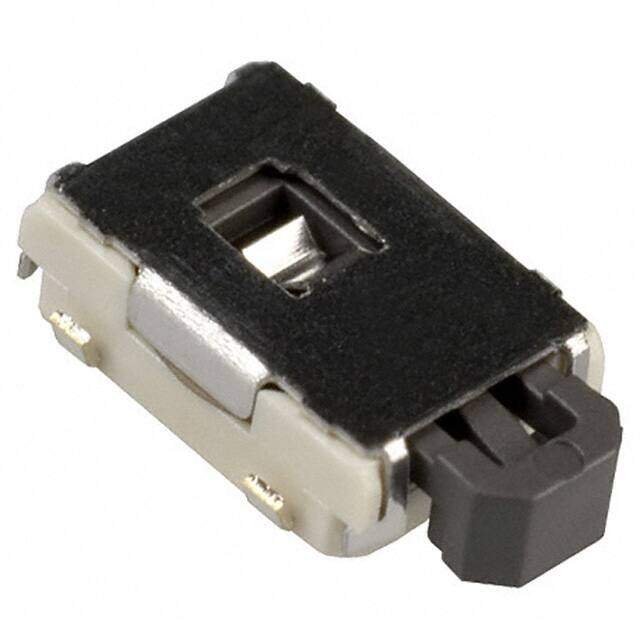

EVQ-PSD02K
RoHS
/
Package /
Category Switches / Tactile Switches
Description
SWITCH TACTILE SPST-NO 0.05A 12V
PDF
/
Buying Options
Total Price: USD $0.21
Unit Price: USD $0.2147
≥1 USD $0.2147
≥10 USD $0.1767
≥100 USD $0.171
≥500 USD $0.1653
≥1000 USD $0.16055
Inventory: 1377
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Contact Plating Gold, Silver
Mount Surface Mount
Mounting Type Surface Mount, Right Angle
Weight 544.310844mg
Technical
Operating Temperature -20°C~70°C
Packaging Tape & Reel (TR)
Published 2010
Series EVQPS
JESD-609 Code e4
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination J-Bend
ECCN Code EAR99
Terminal Finish GOLD/SILVER
HTS Code 8536.50.90.40
Voltage - Rated DC 12V
Packing Method BOX; TAPE AND REEL
Orientation Right Angle
Depth 4.6mm
Current Rating 50mA
Termination Style J Lead
Actuator Type Standard
Circuit SPST-NO
Switch Function Off-Mom
Contact Resistance 500mOhm
Contact Current(DC)-Max 0.05A
Max Current Rating 50mA
Electrical Life 100000 cycles
Throw Configuration SPST
Illumination Non-Illuminated
Max Voltage Rating (DC) 12V
Mechanical Life 100,000 Cycles
Switch Type KEYPAD SWITCH
Contact Current Rating 50mA
Operating Force 160gf
Illumination Type Illuminated, Non-Illuminated
Actuator Orientation Side Actuated
Contact (DC) Max Rating R Load .05A@12VDC
Outline 4.60mm x 6.10mm
Contact Rating @ Voltage 0.05A @ 12VDC
Switch Travel 0.30mm
Number of Switches 1
Contact Bounce Time-Max 10 ms
Dimensions
Height 1.8mm
Length 7.4mm
Width 50.8mm
Actuator Length 1.3mm
Compliance
Radiation Hardening No
REACH SVHC Unknown
RoHS Status RoHS Compliant
Lead Free Lead Free
