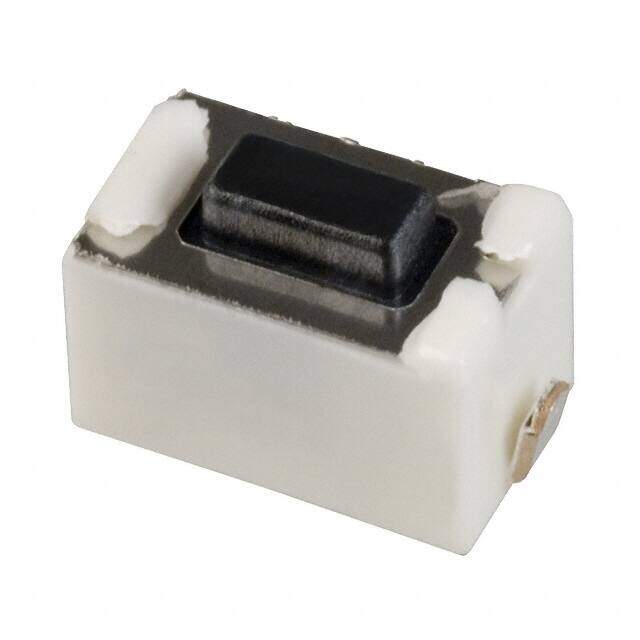

EVQ-PJS04K
RoHS
/
Package SMD/SMT
Category Switches / Tactile Switches
Description
Tactile Switches FLAT ACT 1NF 6x3.5x4.3mm
PDF
/
Buying Options
Total Price: USD $0.29
Unit Price: USD $0.289101
≥1 USD $0.289101
≥10 USD $0.22631
≥100 USD $0.200147
Inventory: 28
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case SMD/SMT
Technical
Operating Temperature -30°C~85°C
Packaging Tape & Reel (TR)
Published 2000
Series EVQPJ
JESD-609 Code e4
Feature Tactile Feedback
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Gull Wing
ECCN Code EAR99
Terminal Finish GOLD/SILVER
HTS Code 8536.50.90.40
Voltage - Rated DC 12V
Packing Method BOX; TAPE AND REEL
Reach Compliance Code unknown
Current Rating 50mA
Termination Style J Lead
Body Length or Diameter 6mm
Body Breadth 3.5 mm
Actuator Type Standard
Circuit SPST-NO
Switch Function Off-Mom
Contact Current(DC)-Max 0.05A
Electrical Life 50000 Cycle(s)
Throw Configuration SPST
Illumination Non-Illuminated
Mechanical Life 50,000 Cycles
Switch Type KEYPAD SWITCH
Contact Current Rating 50mA
Operating Force 100gf
Actuator Orientation Top Actuated
Contact (DC) Max Rating R Load .05A@12VDC
Outline 6.00mm x 3.50mm
Contact Rating @ Voltage 0.05A @ 12VDC
Switch Travel 0.25mm
Actuator Height off PCB, Vertical 4.30mm
Number of Switches 1
Contact Bounce Time-Max 10ms
Dimensions
Body Height 4mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
