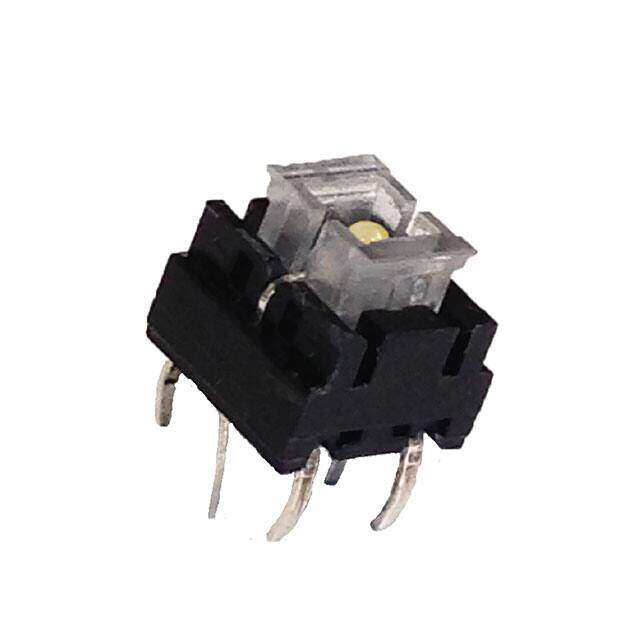

TL6275BA2PQTY
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Tactile Switches
Description
ILLUMINATED THRU HOLE TACT
PDF
/
Buying Options
Total Price: USD $4.75
Unit Price: USD $4.752
≥1 USD $4.752
≥10 USD $4.34016
≥100 USD $3.678532
≥500 USD $3.409868
≥1000 USD $3.099835
≥3000 USD $2.872531
Inventory: 184
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mounting Type Through Hole
Technical
Operating Temperature -25°C~70°C
Packaging Tube
Series TL6275
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Style PC Pin
Actuator Type Square Button
Circuit SPST-NO
Switch Function Off-Mom
Illumination Type, Color LED, Yellow
Illumination Illuminated
Mechanical Life 100,000 Cycles
Operating Force 350gf
Actuator Orientation Top Actuated
Outline 8.00mm x 8.00mm
Contact Rating @ Voltage 0.05A @ 12VDC
Switch Travel 0.25mm
Actuator Height off PCB, Vertical 16.20mm
Compliance
RoHS Status ROHS3 Compliant
