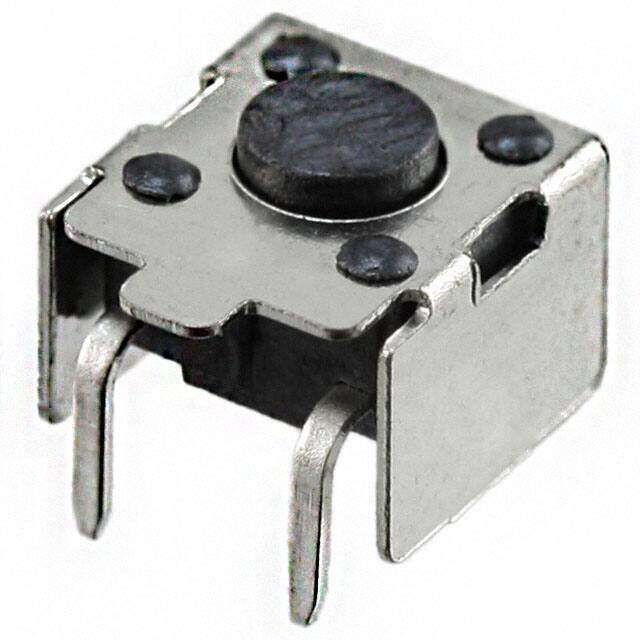

TL3320AF250Q
RoHS
/
Package /
Category Switches / Tactile Switches
Description
SWITCH TACTILE SPST-NO 0.05A 12V
PDF
/
Inventory: 4327
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Actuator Length, Right Angle 3.15mm
Technical
Number of Switches 1
Switch Travel 0.25mm
Contact Rating @ Voltage 0.05A @ 12VDC
Outline 7.10mm x 6.35mm
Contact (DC) Max Rating R Load .05A@12VDC
Actuator Orientation Side Actuated
Operating Force 250gf
Switch Type KEYPAD SWITCH
Mechanical Life 50,000 Cycles
Illumination Non-Illuminated
Throw Configuration SPST
Electrical Life 50000 Cycle(s)
Contact Current(DC)-Max 0.05A
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Standard
Body Breadth 3.6 mm
Body Length or Diameter 7.1mm
Termination Style Gull Wing
Current Rating 15mA
Orientation Right Angle
Voltage - Rated DC 12V
HTS Code 8536.50.90.40
ECCN Code EAR99
Termination Gull Wing
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series TL3320
Published 2006
Packaging Tape & Reel (TR)
Operating Temperature -20°C~70°C
Physical
Actuator Material Polyamide (PA), Nylon
Mounting Type Surface Mount, Right Angle
Mount Surface Mount
Contact Plating Silver
