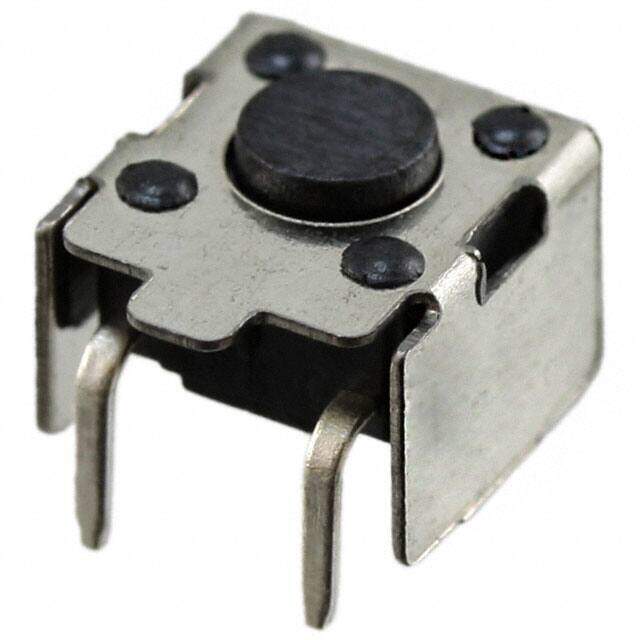

TL3320AF100Q image
Favorite
TL3320AF100Q image
Favorite

TL3320AF100Q

E-Switch
RoHS
/
Package /
Category Switches / Tactile Switches
Description SWITCH TACTILE SPST-NO 0.05A 12V
PDF
/
Inventory: 3128
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant

Dimensions

Actuator Length, Right Angle 3.15mm
Actuator Length 850μm

Technical

Number of Switches 1
Switch Travel 0.25mm
Contact Rating @ Voltage 0.05A @ 12VDC
Outline 7.10mm x 6.35mm
Contact (DC) Max Rating R Load .05A@12VDC
Actuator Orientation Side Actuated
Operating Force 100gf
Switch Type KEYPAD SWITCH
Mechanical Life 80,000 Cycles
Max Voltage Rating (DC) 12V
Illumination Non-Illuminated
Throw Configuration SPST
Electrical Life 80000 cycles
Contact Current(DC)-Max 0.05A
Contact Resistance 100mOhm
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Standard
Body Breadth 3.6 mm
Body Length or Diameter 7.1mm
Termination Style Gull Wing
Current Rating 15mA
Orientation Right Angle
Voltage - Rated DC 12V
HTS Code 8536.50.90.40
ECCN Code EAR99
Termination Gull Wing
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series TL3320
Published 2006
Packaging Tape & Reel (TR)
Operating Temperature -20°C~70°C

Physical

Actuator Material Polyamide (PA), Nylon
Mounting Type Surface Mount, Right Angle
Mount Surface Mount
Contact Plating Silver
