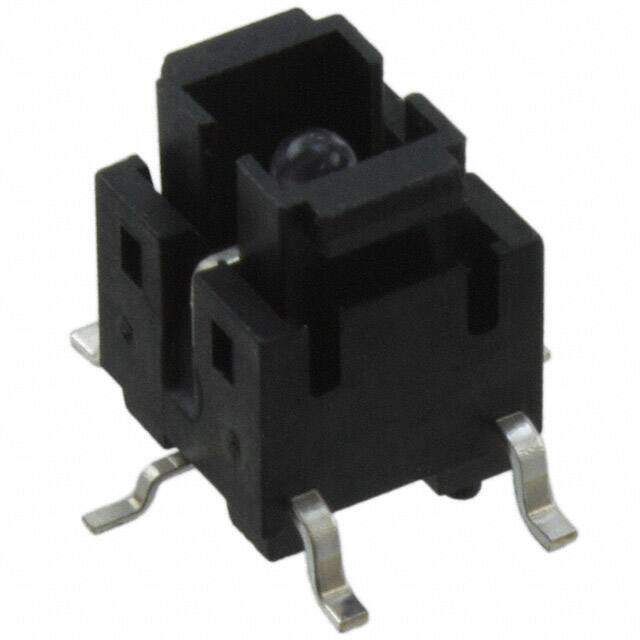

TL3240F100Y
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Tactile Switches
Description
SWITCH TACTILE SPST-NO 0.05A 12V
PDF
/
Buying Options
Total Price: USD $3.56
Unit Price: USD $3.555333
≥1 USD $3.555333
≥200 USD $1.419245
≥450 USD $1.371981
≥900 USD $1.348348
Inventory: 7866
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Technical
Actuator Height off PCB, Vertical 7.80mm
Switch Travel 0.20mm
Contact Rating @ Voltage 0.05A @ 12VDC
Outline 6.10mm x 6.10mm
Actuator Orientation Top Actuated
Illumination Type Illuminated, LED
Operating Force 100gf
Contact Current Rating 50mA
Switch Type KEYPAD SWITCH
Mechanical Life 200,000 Cycles
Max Voltage Rating (DC) 12V
Illumination Illuminated
Throw Configuration SPST
Electrical Life 200000 cycles
Illumination Type, Color LED, Yellow
Illumination Voltage (Nominal) 2VDC
Contact Resistance 100mOhm
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Plunger for Cap
Termination Style Gull Wing
Orientation Straight
Color Yellow
ECCN Code EAR99
Termination Gull Wing
Moisture Sensitivity Level (MSL) 2 (1 Year)
Part Status Active
Feature Board Guide
Series TL3240
Published 2012
Packaging Tape & Reel (TR)
Operating Temperature -25°C~70°C
Physical
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 9 Weeks
