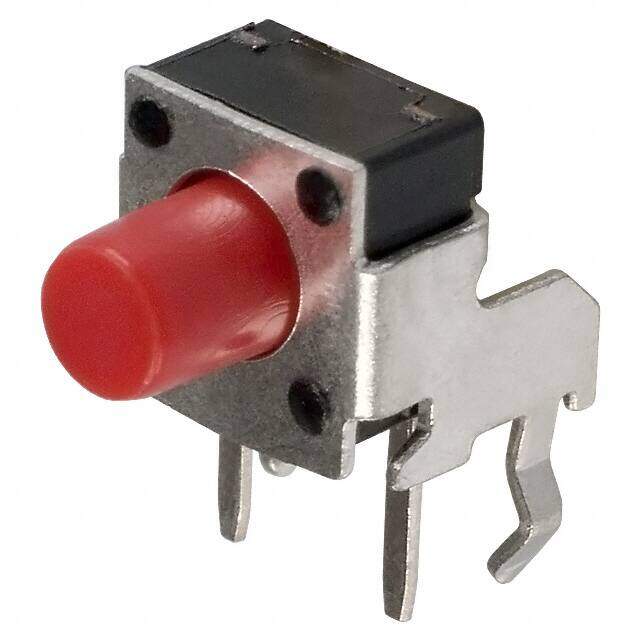

TL1105RF250Q
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Tactile Switches
Description
SWITCH TACTILE SPST-NO 0.05A 12V
PDF
/
Buying Options
Total Price: USD $0.33
Unit Price: USD $0.3256
≥1 USD $0.3256
≥10 USD $0.3168
≥100 USD $0.259072
≥500 USD $0.196777
≥1000 USD $0.171635
≥3000 USD $0.159614
Inventory: 1564
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length, Right Angle 6.15mm
Actuator Length 3.6mm
Width 6mm
Length 6mm
Technical
Switch Travel 0.25mm
Contact Rating @ Voltage 0.05A @ 12VDC
Outline 7.10mm x 6.55mm
Actuator Orientation Side Actuated
Operating Force 250gf
Contact Current Rating 50mA
Mechanical Life 100,000 Cycles
Max Voltage Rating (DC) 50V
Illumination Non-Illuminated
Throw Configuration SPST
Electrical Life 100000 cycles
Contact Resistance 100mOhm
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Standard
Termination Style PC Pin
Current Rating 50mA
Orientation Right Angle
Voltage - Rated DC 12V
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series TL1105
Published 2006
Packaging Bulk
Operating Temperature -20°C~70°C
Physical
Actuator Material Polyamide (PA), Nylon
Housing Material Nylon
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Silver
Contact Material Bronze, Silver
Supply Chain
Factory Lead Time 11 Weeks
