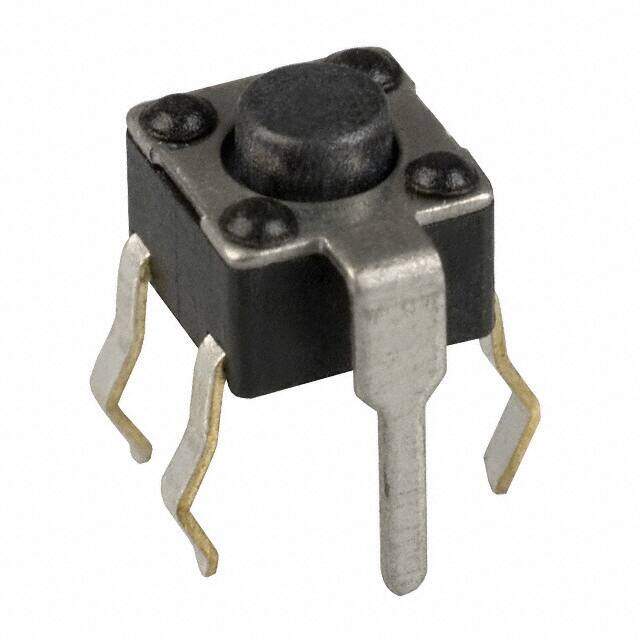

PTS453TL38
RoHS
/
Package /
Category Switches / Tactile Switches
Description
SWITCH TACTILE SPST-NO 0.05A 12V
PDF
/
Inventory: 6256
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Technical
Actuator Height off PCB, Vertical 3.80mm
Contact Rating @ Voltage 0.05A @ 12VDC
Outline 4.50mm x 4.50mm
Actuator Orientation Top Actuated
Illumination Type Non-Illuminated
Operating Force 130gf
Contact Current Rating 100mA
Mechanical Life 25,000 Cycles
Illumination Non-Illuminated
Throw Configuration SPST
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Standard
Termination Style PC Pin
Current Rating 50mA
Voltage - Rated DC 12V
Min Operating Temperature -40°C
Max Operating Temperature 60°C
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Grounding Pin
Series PTS453
Published 2003
Packaging Bulk
Operating Temperature -40°C~60°C
Physical
Actuator Material Polyamide (PA66), Nylon 6/6
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
