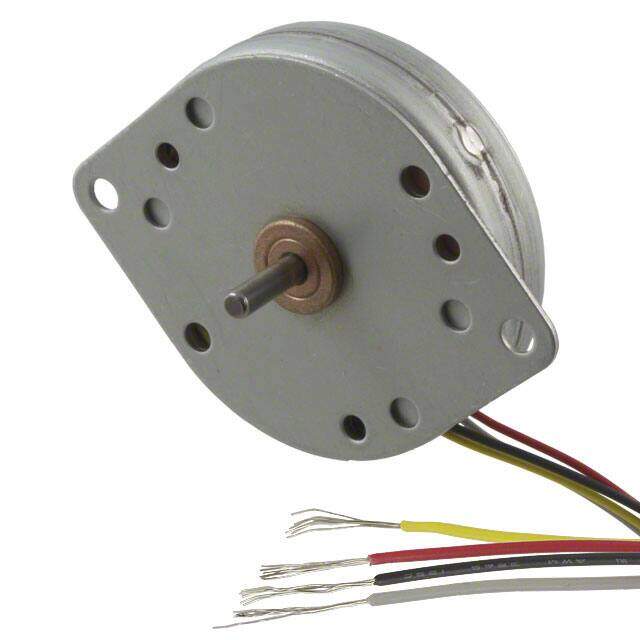

44M100D2B
RoHS
RoHS compliant
RoHS compliantPackage /
Category Motors, Solenoids, Driver Boards/Modules / Stepper Motors
Description
STEPPER MOTOR PM BIPOLAR 12V
PDF
/
Buying Options
Total Price: USD $21.7
Unit Price: USD $21.7008
≥1 USD $21.7008
≥10 USD $21.04608
Inventory: 60
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Weight 0.177lb 80.29g
Mounting Hole Spacing 1.950 (49.48mm)
Technical
Operating Temperature 0°C~60°C
Published 2003
Series 44M
Size / Dimension Round - 1.732Dia 44.00mm
Feature Round Shaft
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Type Permanent Magnet
Voltage - Rated 12VDC
Voltage - Rated DC 12V
Termination Style Wire Leads
Accuracy ±11%
Coil Resistance 70Ohms
Coil Type Bipolar
Step Angle 3.6°
Steps per Revolution 100
Torque - Holding (oz-in / mNm) 6.6 / 46.6
Rotor Inertia 8.2gcm2
Dimensions
Diameter 44mm
Thickness 12.2mm
Diameter - Shaft 0.118 (3.00mm)
Length - Shaft and Bearing 0.450 11.43mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
