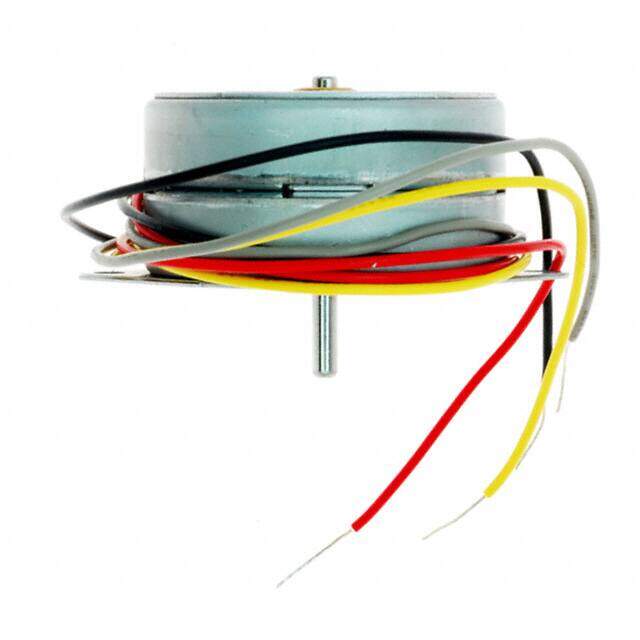

42M048C1B
RoHS
RoHS compliant
RoHS compliantPackage /
Category Motors, Solenoids, Driver Boards/Modules / Stepper Motors
Description
STEPPER MOTOR PM BIPOLAR 5V
PDF
/
Buying Options
Total Price: USD $33.76
Unit Price: USD $33.7568
≥1 USD $33.7568
≥10 USD $32.736
≥100 USD $30.69
≥500 USD $29.667264
≥1000 USD $28.644176
≥3000 USD $27.621264
Inventory: 189
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Weight 0.319lb 144.7g
Mounting Hole Spacing 1.950 (49.48mm)
Technical
Operating Temperature -20°C~70°C
Published 2003
Series 42M
Size / Dimension Round - 1.650Dia 42.00mm
Feature Round Shaft
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Type Permanent Magnet
Voltage - Rated DC 5V
Current Rating (Amps) 550mA
Termination Style Wire Leads
Accuracy ±15%
Coil Resistance 9.1Ohm
Coil Type Bipolar
Step Angle 7.5°
Steps per Revolution 48
Torque - Holding (oz-in / mNm) 11.9 / 84
Rotor Inertia 12.5gcm2
Dimensions
Diameter 42mm
Thickness 22mm
Diameter - Shaft 0.118 (3.00mm)
Length - Shaft and Bearing 0.450 11.43mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
Alternative Model
