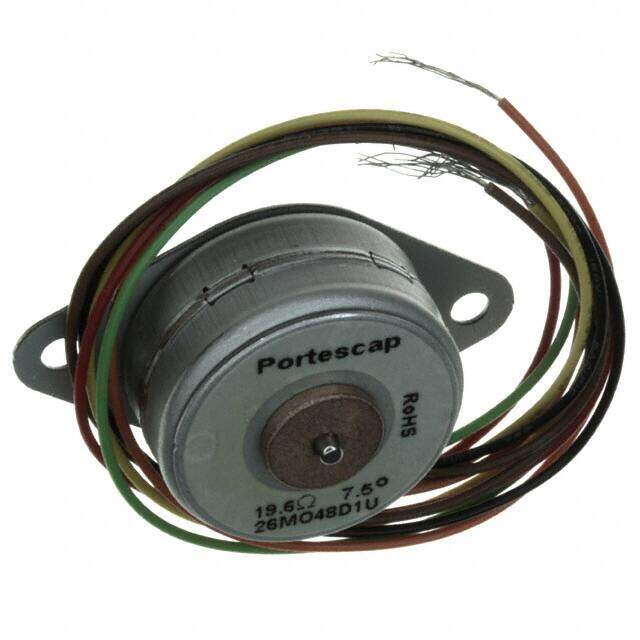

26M048D1U

Portescap
RoHS
RoHS RoHS compliant
Package /
Category Motors, Solenoids, Driver Boards/Modules / Stepper Motors
Description STEPPER MOTOR PM UNIPOLAR 5V
PDF
/
Buying Options
Total Price: USD $18.61
Unit Price: USD $18.612
≥1 USD $18.612
Inventory: 117
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant

Dimensions

Length - Shaft and Bearing 0.445 11.30mm
Diameter - Shaft 0.079 (2.00mm)
Thickness 13.7mm
Diameter 26mm

Technical

Rotor Inertia 1.1gcm2
Torque - Holding (oz-in / mNm) 1.6 / 11.3
Steps per Revolution 48
Step Angle 7.5°
Coil Type Unipolar
Coil Resistance 19.6Ohm
Accuracy ±15%
Termination Style Wire Leads
Current Rating (Amps) 260mA
Voltage - Rated 5VDC
Type Permanent Magnet
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Round Shaft
Size / Dimension Round - 1.030Dia 26.16mm
Series 26M
Published 2003
Operating Temperature -20°C~70°C

Physical

Mounting Hole Spacing 1.370 (34.90mm)
Weight 0.075lb 34.02g

Supply Chain

Factory Lead Time 12 Weeks
