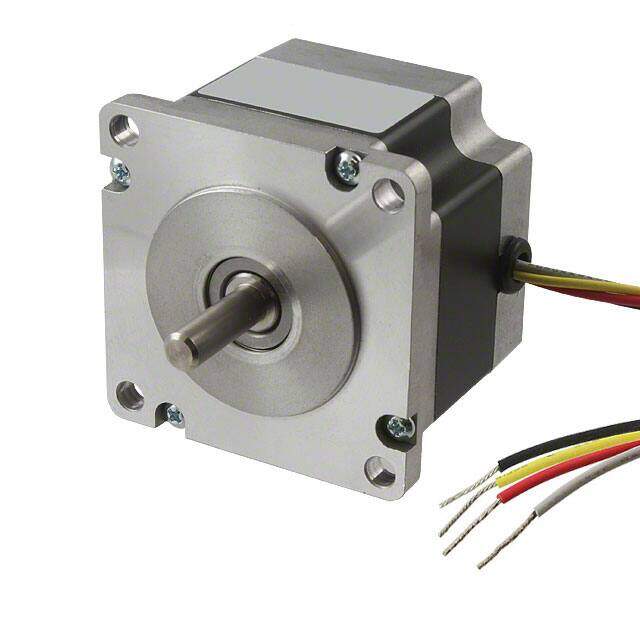

23H018D10B
RoHS
/
Package /
Category Motors, Solenoids, Driver Boards/Modules / Stepper Motors
Description
STEP MOTOR HYBRID BIPOLAR 5.7V
PDF
/
Inventory: 3424
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Termination Style Wire Leads
Approval Agency CE, UL
Accuracy ±5%
Coil Resistance 5.7Ohms
Coil Type Bipolar
Step Angle 1.8°
Steps per Revolution 200
Torque - Holding (oz-in / mNm) 75 / 530
NEMA Frame Size 23
Rotor Inertia 190gcm2
Current Rating (Amps) 1A
Voltage - Rated 5.7VDC
Type Hybrid
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Feature Round Shaft
Size / Dimension Square - 2.250 x 2.250 57.15mmx57.15mm
Series H3
Published 2008
Operating Temperature -20°C~40°C
Dimensions
Diameter - Shaft 0.250 (6.35mm)
Length - Shaft and Bearing 0.810 20.57mm
Compliance
RoHS Status RoHS Compliant
Physical
Mounting Hole Spacing 1.856 (47.14mm)
Weight 1lb 453.59g
