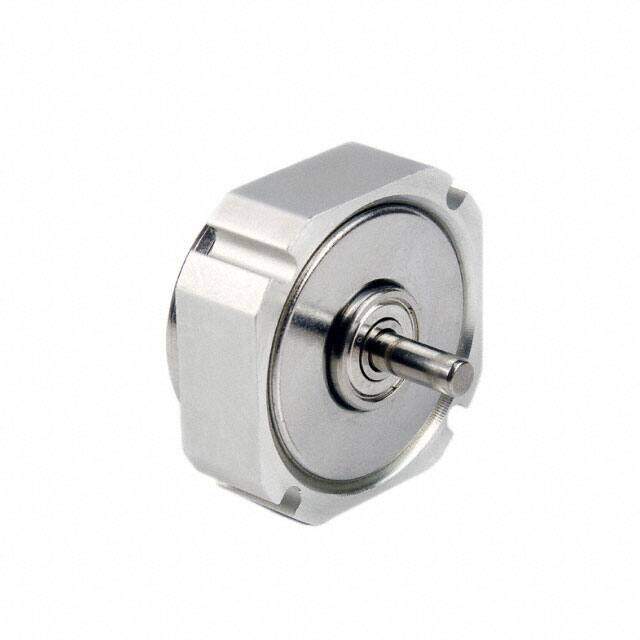

WO-4109V-51
RoHS
RoHS compliant
RoHS compliantPackage /
Category Motors, Solenoids, Driver Boards/Modules / Stepper Motors
Description
STEPPER MOTOR
PDF
/
Buying Options
Total Price: USD $38.76
Unit Price: USD $38.7552
≥1 USD $38.7552
≥10 USD $38.08464
≥100 USD $37.41672
≥500 USD $36.748448
≥1000 USD $36.080352
≥3000 USD $35.54584
Inventory: 128
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Length - Shaft and Bearing 0.591 15.00mm
Diameter - Shaft 0.197 (5.00mm)
Technical
Rotor Inertia 0.352gcm2
NEMA Frame Size 17
Torque - Holding (oz-in / mNm) 15 / 105.9
Steps per Revolution 400
Step Angle 0.9°
Coil Type Bipolar
Coil Resistance 3Ohm
Termination Style Wire Leads
Current Rating (Amps) 1.2A
Voltage - Rated 24VDC
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Double Round Shaft
Size / Dimension Square - 1.654 x 1.654 42.00mmx42.00mm
Packaging Tray
Operating Temperature -20°C~50°C
Physical
Mounting Hole Spacing 1.220 (31.00mm)
Supply Chain
Factory Lead Time 16 Weeks
